FBS Maviroll

High-speed roll-up fabric door suited to a wide range of applications

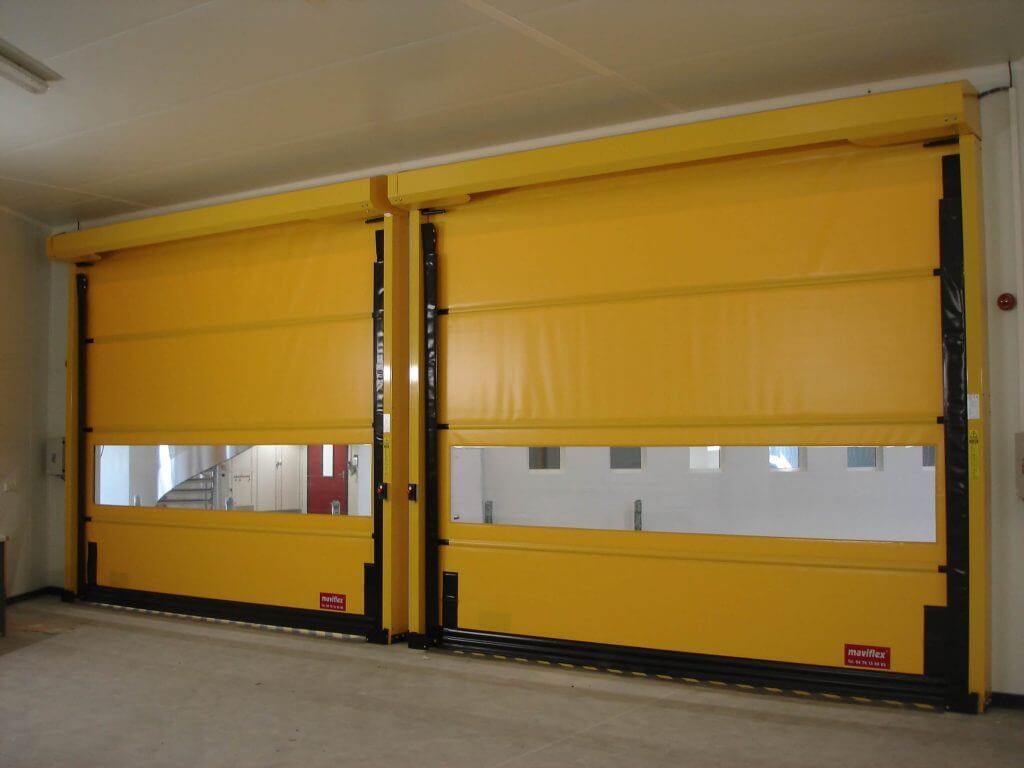

FBS Maviroll High Speed Door

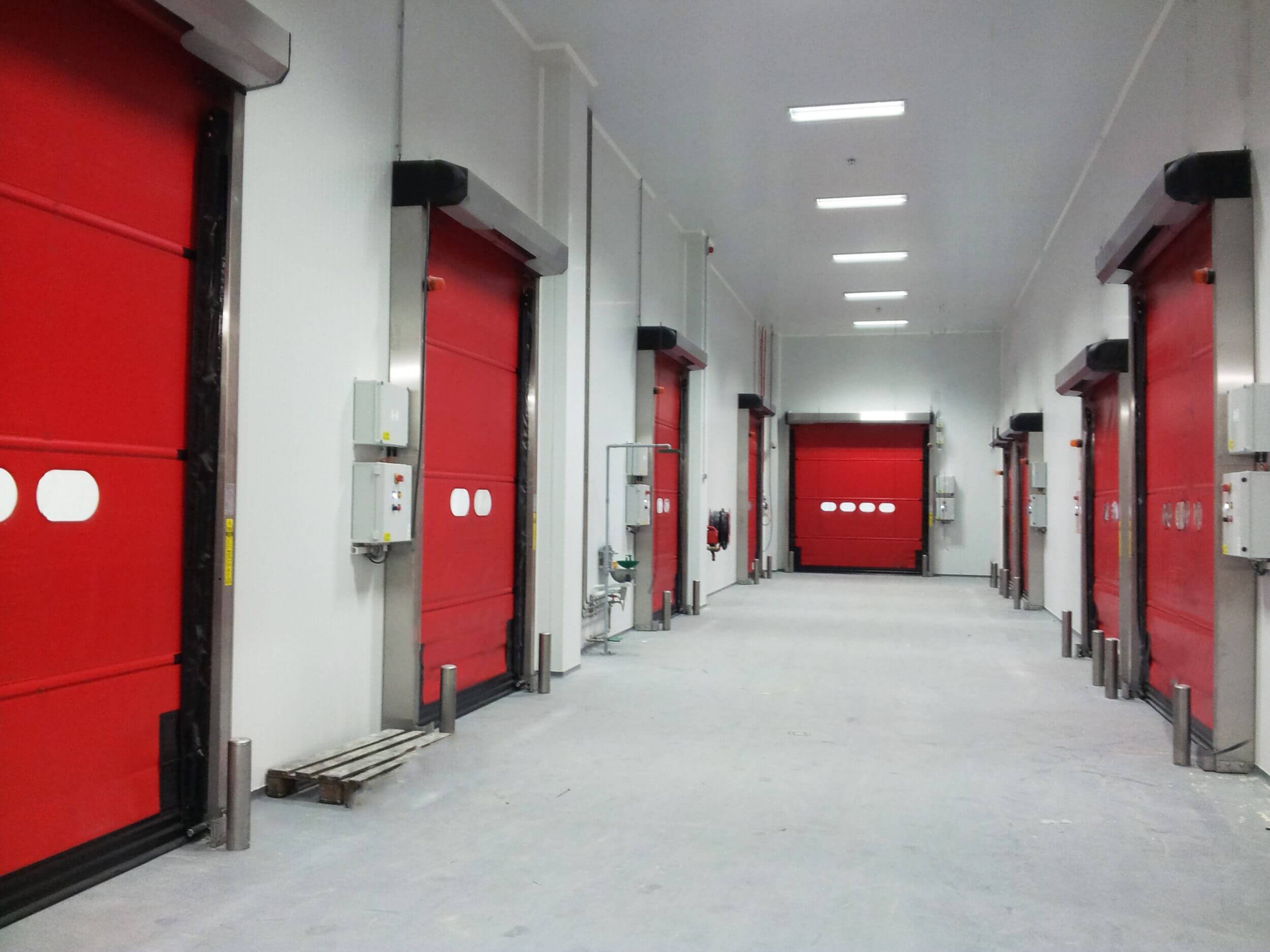

The FBS Maviroll is a high-speed roll-up fabric door suited to a wide range of applications including but not restricted to supermarkets, industrial areas, chilled rooms and food processing areas.

Fully modular in design and available in different versions including stainless steel frames, triple insulation curtains and emergency exits. The front panel display, safetime system and belt drive ensure optimal reliability and safety.

The doors are quick and easy to install and feature a unique self-repairing feature – a rapid rise self-repairing curtain that enables the door to automatically reset itself in the event of accidental damage – by simply being fully opened. The anti-crash system also means that if the curtain is caught by a fork lift, or by any other means, it will open, reset itself then close again – saving money on expensive repair bills.


Optional Extras

  • Double skin curtain with insulated foam – for chilled rooms
  • Battery back-up – for automatic opening (power supply 230v single phase)

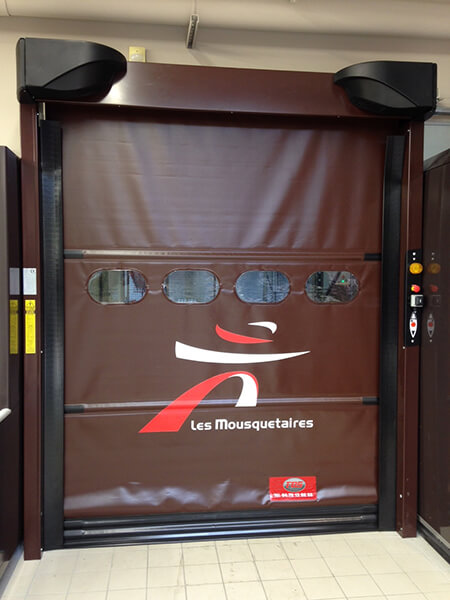

  • Custom printing/branding


Technical Specification

  • EN 13241-1 safety standard EC
  • Opening: 1 m/s | closing: 0.5 m/s
  • Self-supporting mill galvanised steel frame – with polyester powder coated finish
  • Patented flexible track structure
  • Unique flexible track for breakaway curtain – with automatic re-insertion system
  • Soft bottom edge technology – prevents conflict with rigid bottom edge electronics
  • Hood/top and motor cover
  • Jamb inserted control panel
  • 832 g/m2 curtain – reinforced by a composite tube
  • Maximum clear opening – H4000 x W4000 mm

Technical dimensions

Control box

Control box power cable: 3G2.5 square 1 phase + ground + neutral
Electrical supply: 230V 1-Phase
Head circuit breaker: 16A curve C or 10A curve AM
Dimensions: (h) 400 x (w) 290+55 x (d) 190 mm

Dimensions and specifications are subject to change without notice.

Key Benefits

Health + Safety

Energy saving

Easy cleaning

Controls environment

Easily maintained

Competitive price
