FBS Mavicold

Purpose built for cold environments (from -1°C to -30°C)

FBS Mavicold

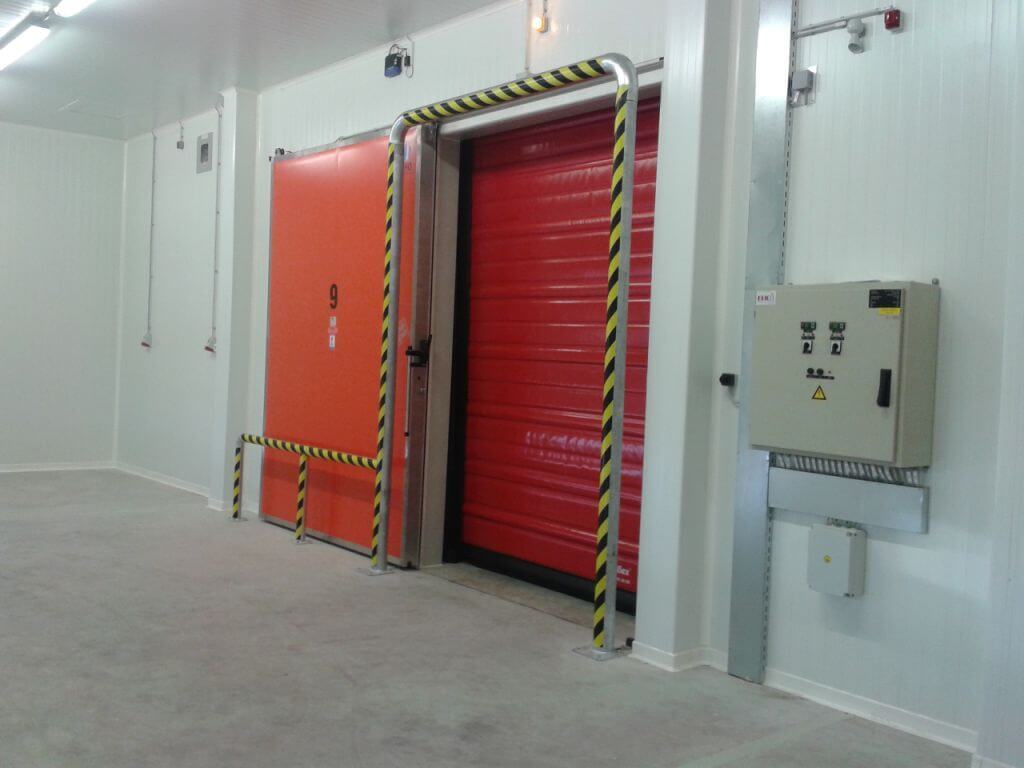

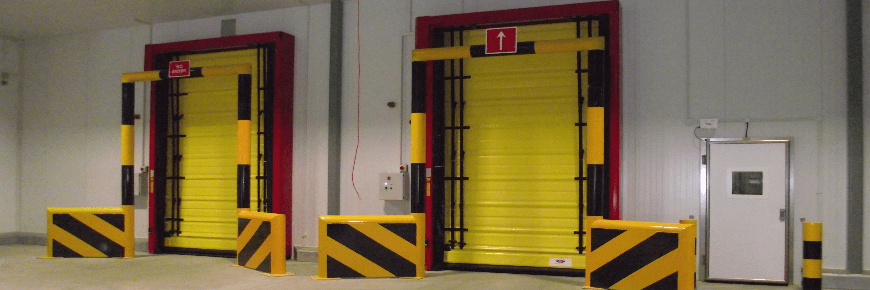

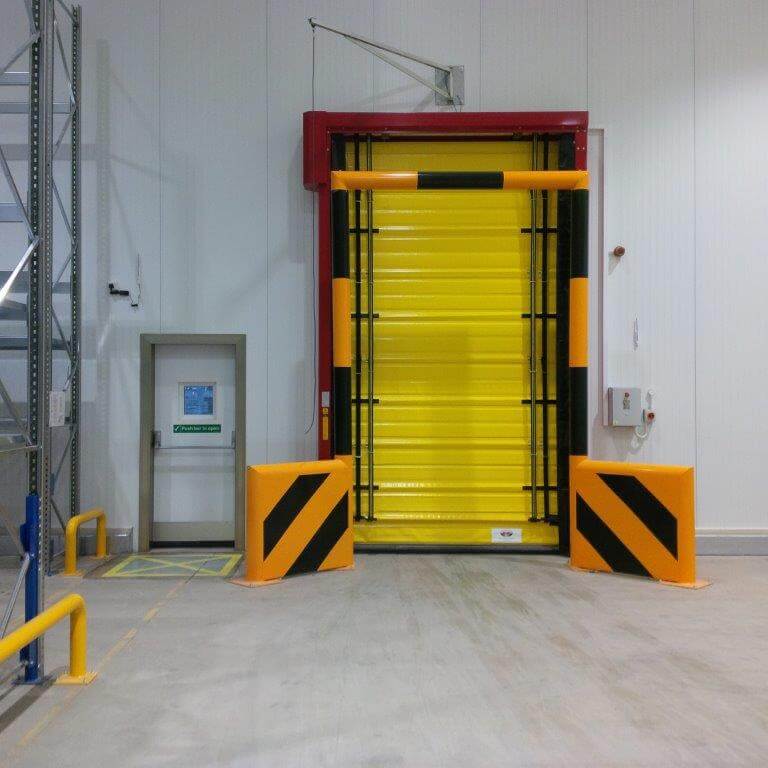

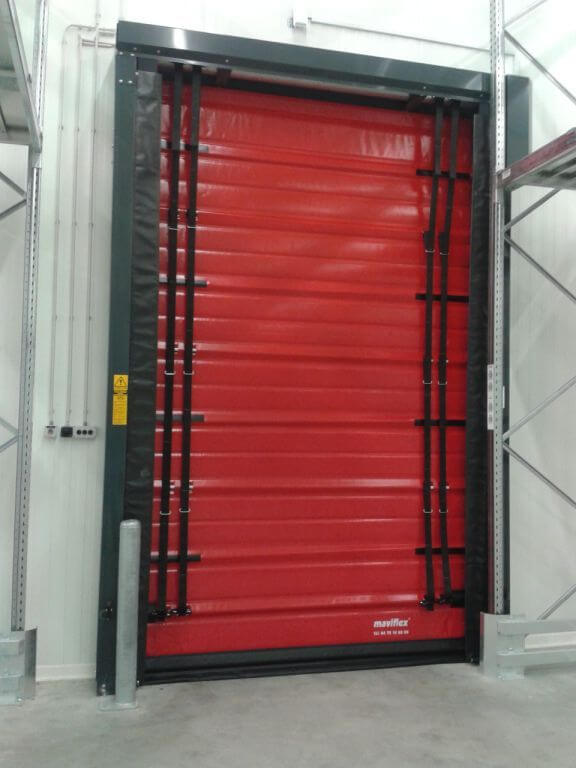

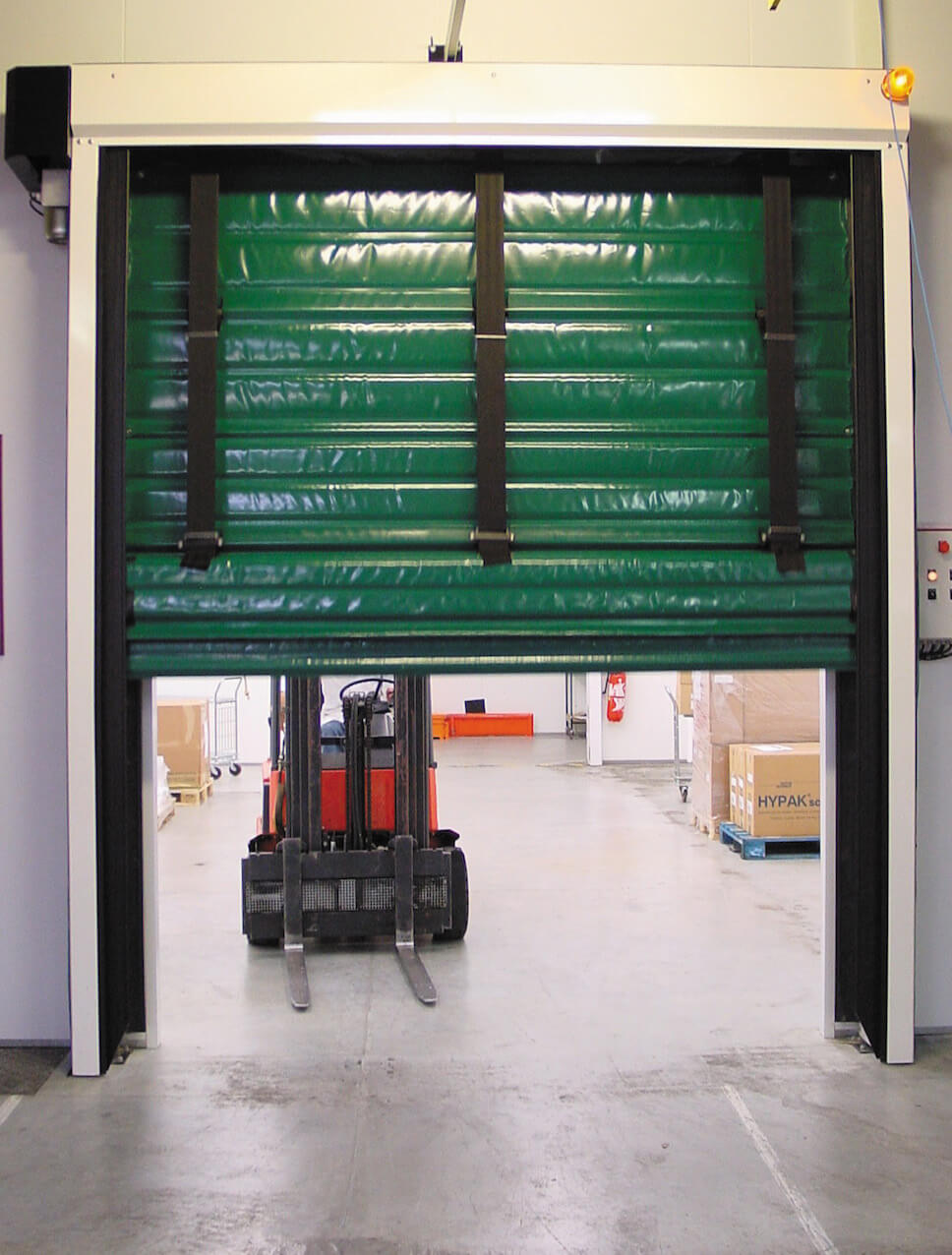

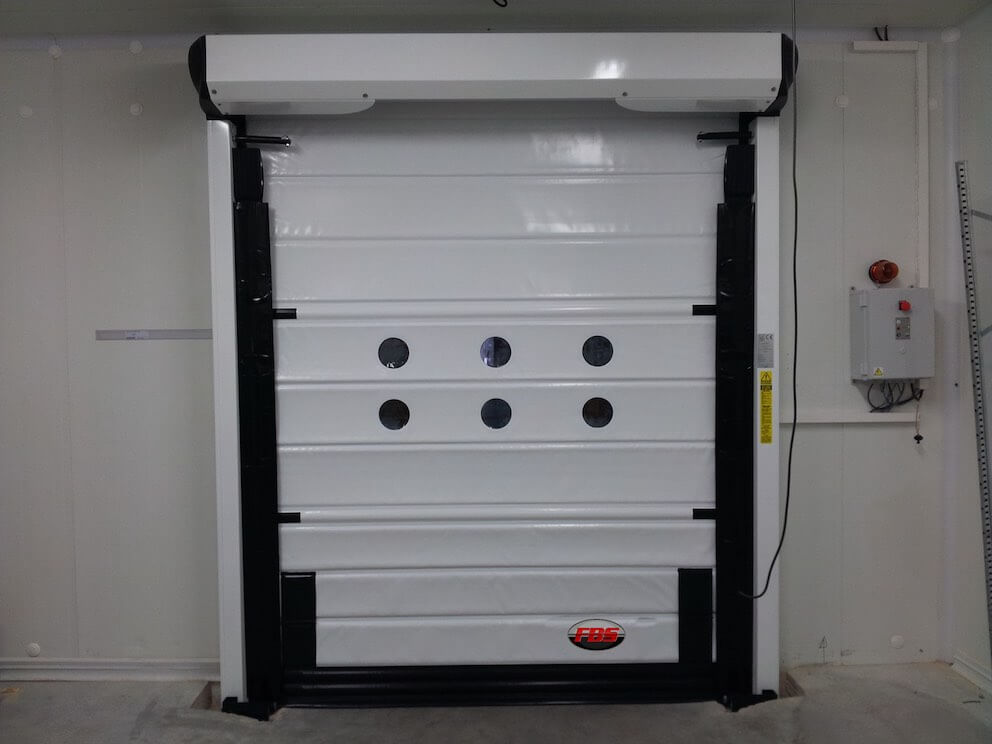

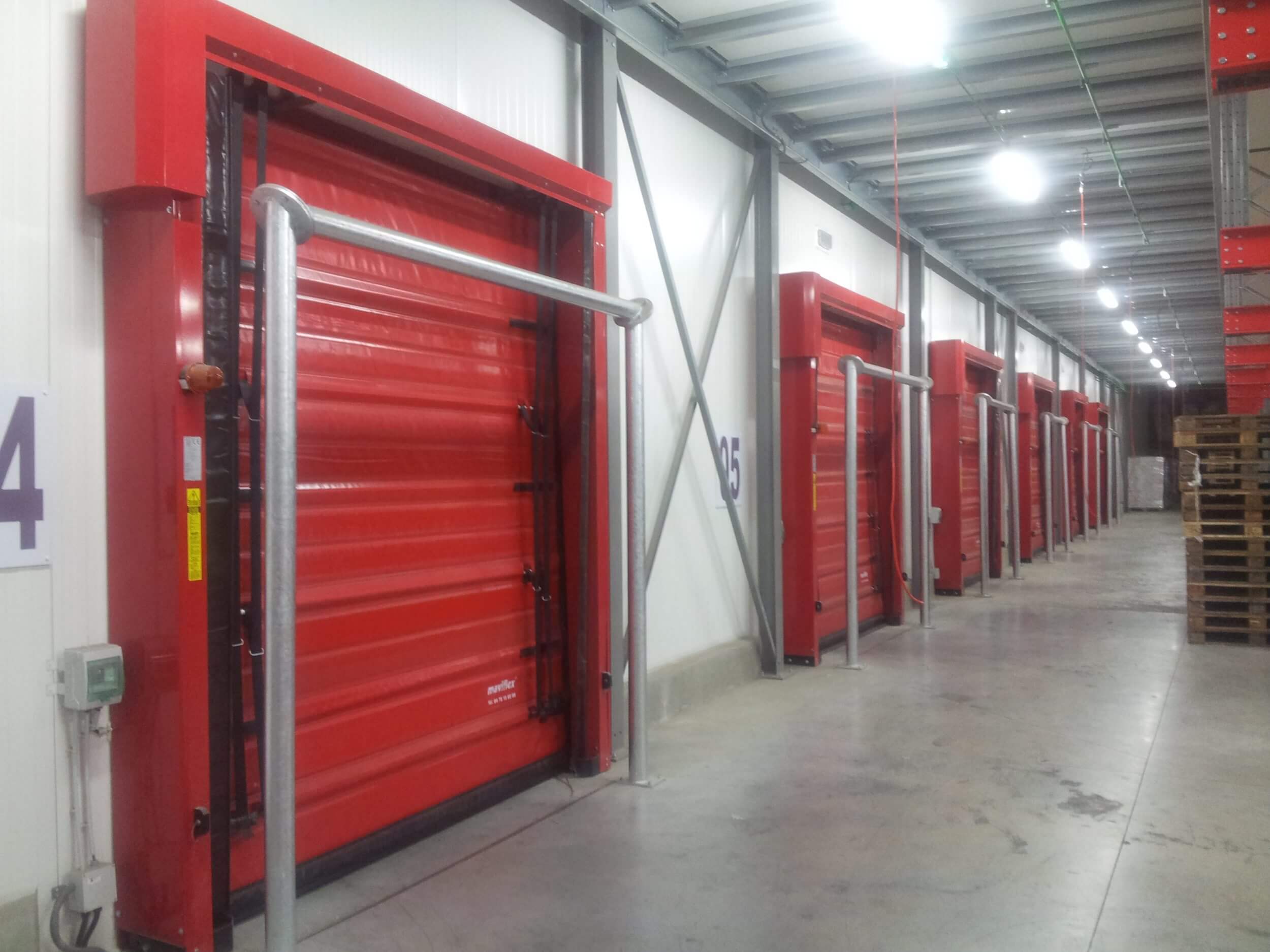

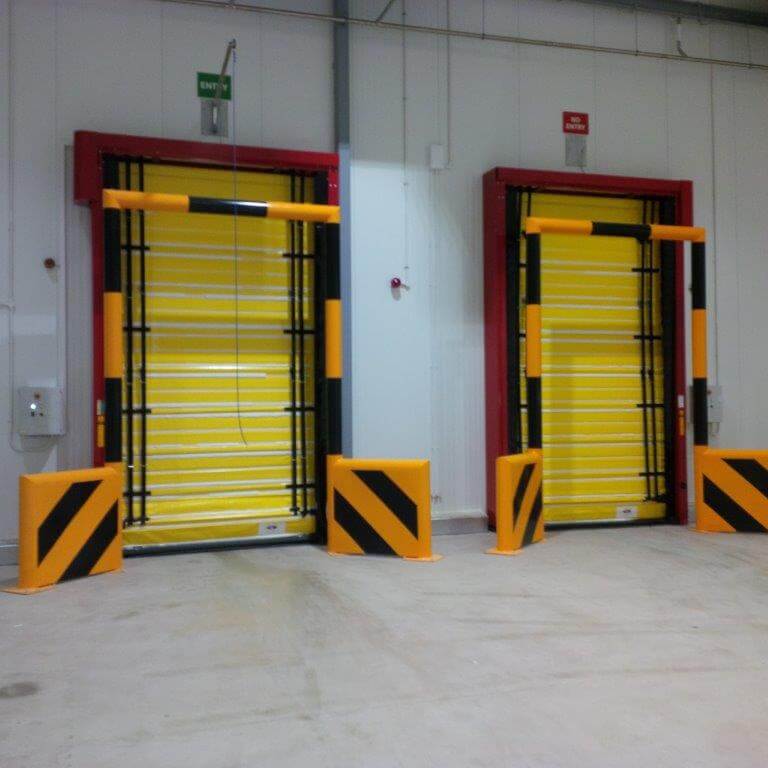

The FBS Mavicold high-speed door is purpose built for freezer, chill rooms and cold stores (from -1°C to -30°C).

Designed with both strength and efficiency in mind, the doors feature a unique insulated curtain technology which uses an internal heating system to ensure a consistent temperature to minimise refrigerant losses and energy expenditure in cold rooms.

The doors are quick and easy to install and feature a unique self-repairing feature – a rapid rise self-repairing curtain that enables the door to automatically reset itself in the event of accidental damage – by simply being fully opened. The anti-crash system also means that if the curtain is caught by a fork lift, or by any other means, it will open, reset itself then close again, saving money on expensive repair bills.

Technical Specification

  • EN 13241-1 safety standard EC
  • Opening: 1 m/s  | closing: 0.5 m/s
  • Supple folding system for cold room
  • Self-Supporting mill galvanised steel frame with polyester powder coated finish- no welding
  • Heating system with airtight, watertight, dustproof silicone cables in a heat spreading tube
  • Peripheral isolating foam between structure and wall
  • Double fabric including thermo-reflective aluminium films (which hold air bubbles) and isolating cushion
  • Curtain with composite strengthening tubes and seamless safety straps
  • Special low temperature oil
  • Stainless steel brake
  • Maximum clear opening – 4500mm(h) x 4500mm(w)

Technical dimensions

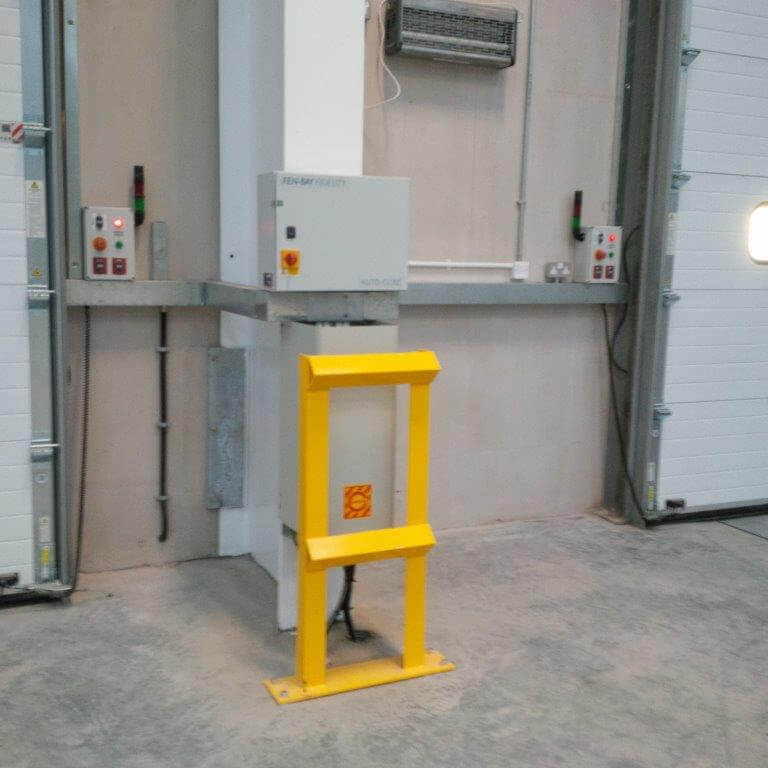

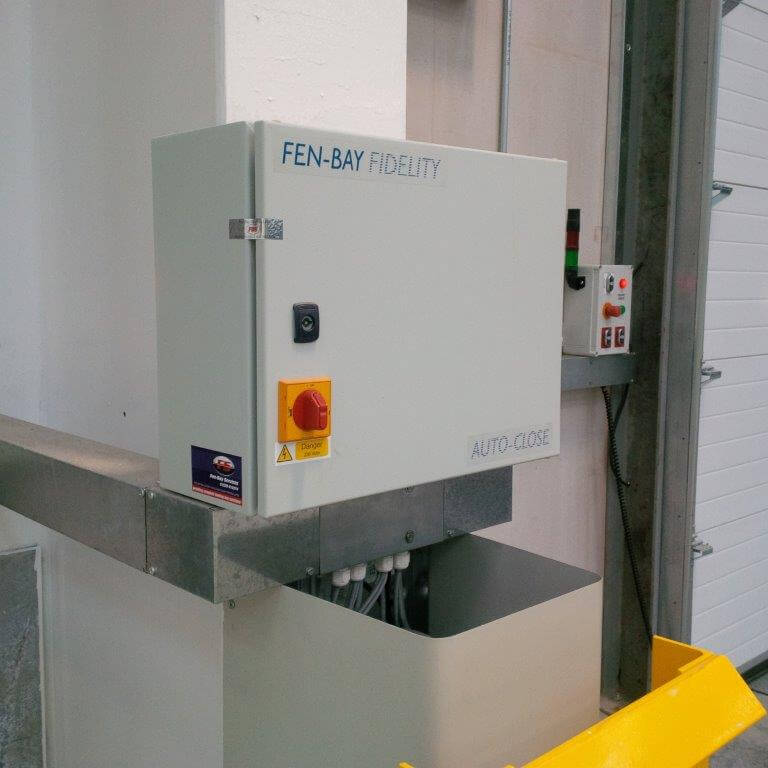

Control box

Control box power cable: 5G2.5 square 3 phases + ground + neutral
Electrical supply: 400V 3-Phases + ground + neutral
Head circuit breaker: 16A curve D
Dimensions: (h) 500 x (w) 400+52 x (d) 200 mm

Dimensions and specifications are subject to change without notice.

Service & Maintenance

Key Benefits

-1°C to -30°C

Maximises thermal insulation

Energy saving

Low maintenance

Competitive pricing

Quick and easy install
