FBS Maviclean

High-speed door for clean room applications

FBS Maviclean Doors

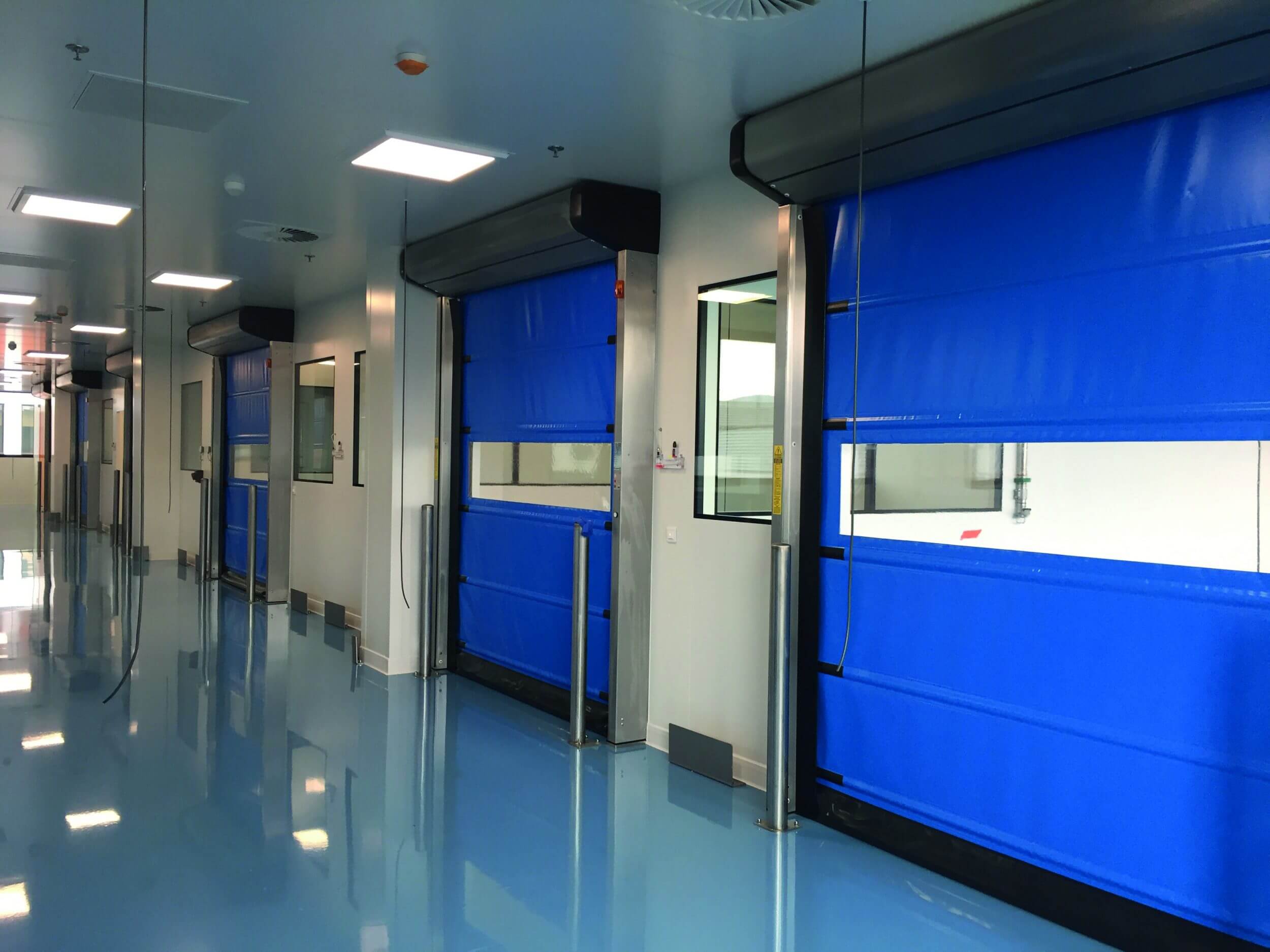

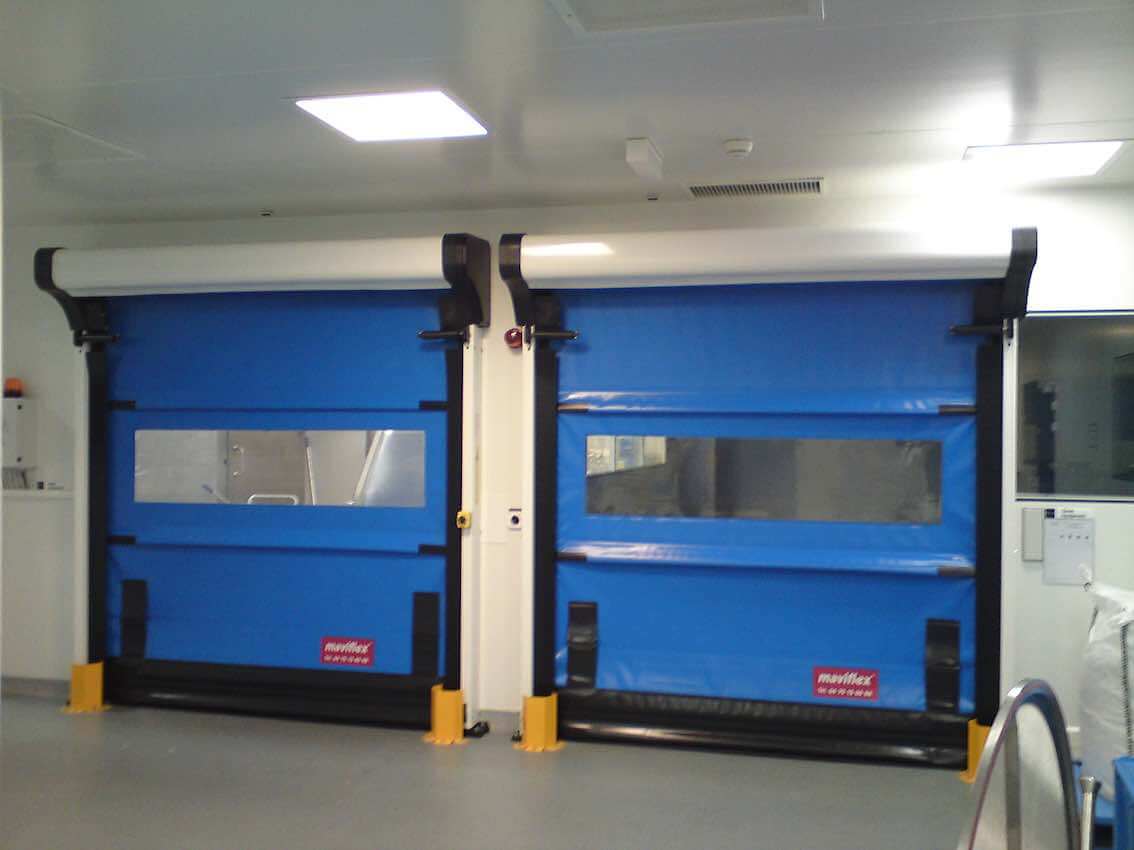

Suited to clean room locations, typically in the pharmaceutical and healthcare industries, the FBS Maviclean is designed to maintain air pressure in controlled environments.

Renowned for their reliability, the doors feature a unique self-repairing feature – a rapid rise curtain that enables the door to automatically reset itself in the event of accidental damage – simply by being fully opened. The anti-crash system also means that if the curtain is caught by a fork lift or by any other means, it will reset itself again before closing – saving money on expensive repair bills.

Technical Specification

  • EN 13241-1 safety standard EC
  • ISO7 classification
  • CSTB REPORT N°BV04-126 – measured air tightness, pressure resistance test
  • Opening: 1 m/s /Closing: 0.5 m/s
  • Self-Supporting mill galvanised steel frame with polyester powder coated finish
  • Patented flexible track structure
  • Unique flexible track – with breakaway curtain and automatic re-insertion system
  • Soft bottom edge technology – prevents conflict with rigid bottom edge electronics
  • Hood/top roll and motor cover
  • Jamb inserted control panel
  • Maximum clearance  – Height 4000mm x Width 4000mm

Technical Dimensions

Control box

Control box power cable: 4G2.5 square 3 phases + ground without neutral
Electrical supply: 400V 3-phases + ground
Head circuit breaker: 16A curve C or 10A AM curve
Dimensions: (h) 400 x (w) 290+55 x (d) 190 mm

Dimensions and specifications are subject to change without notice.

Key Benefits

Energy saving

Reduces exchange of airloss

Easy cleaning

Controlled environments

Easy maintained
