Telescopic-Lip Dock Levellers

Extendable lip providing extended reach between vehicle and dock leveller

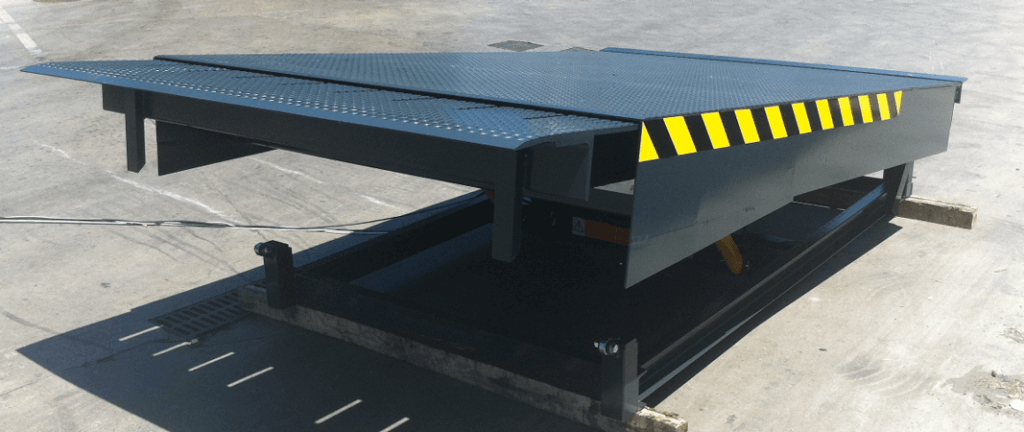

Telescopic-Lip Dock Levellers

The telescopic-lip dock leveller is used to bridge larger gaps between the warehouse and vehicle. The dock-leveller platform and lip are hydraulically driven allowing full operational control and high quality safety features.

This model has a retractable lip of between 500mm and 1000mm depending on the model chosen. They are the perfect solution for reaching places that a Swing Lip Leveller cannot access.

Options

  • Painted/galvanised/stainless
  • Standard sizes or made to measure
  • Manufactured to suit all types of pit design
  • Insulated deck available

Key Components

  • Platform: constructed from durbar plate sheet 8-10mm thick, laminated profiles and protective side panels
  • Lip: constructed from durbar plate sheet 13-15mm thick, the lip is folded and milled to a taper at the end to allow it to sit onto the truck bed making it easier for the passage of forklifts and pallet trucks
  • Support frame: formed from pressed profiles to which the platform and hydraulic assembly are mounted

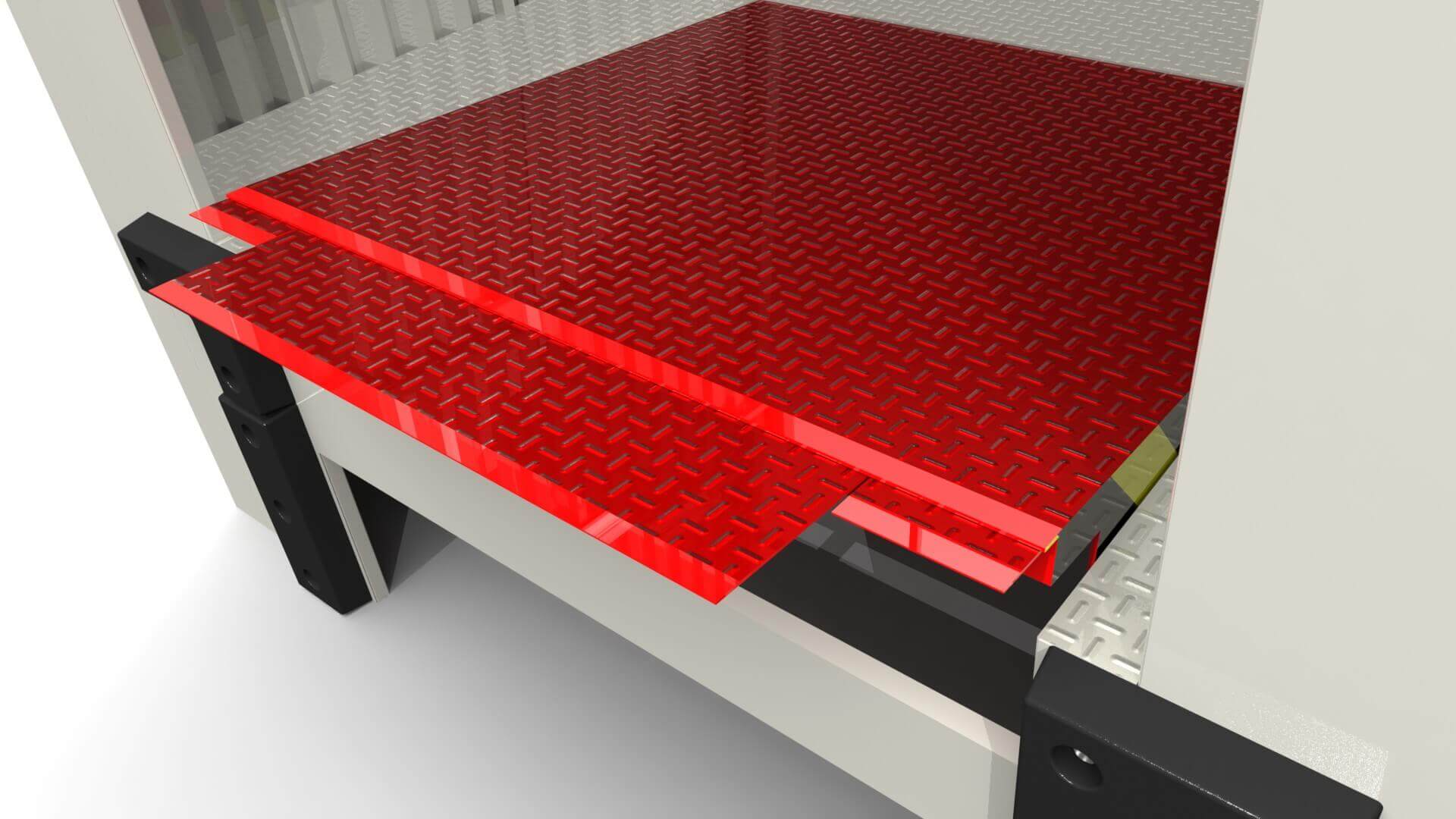

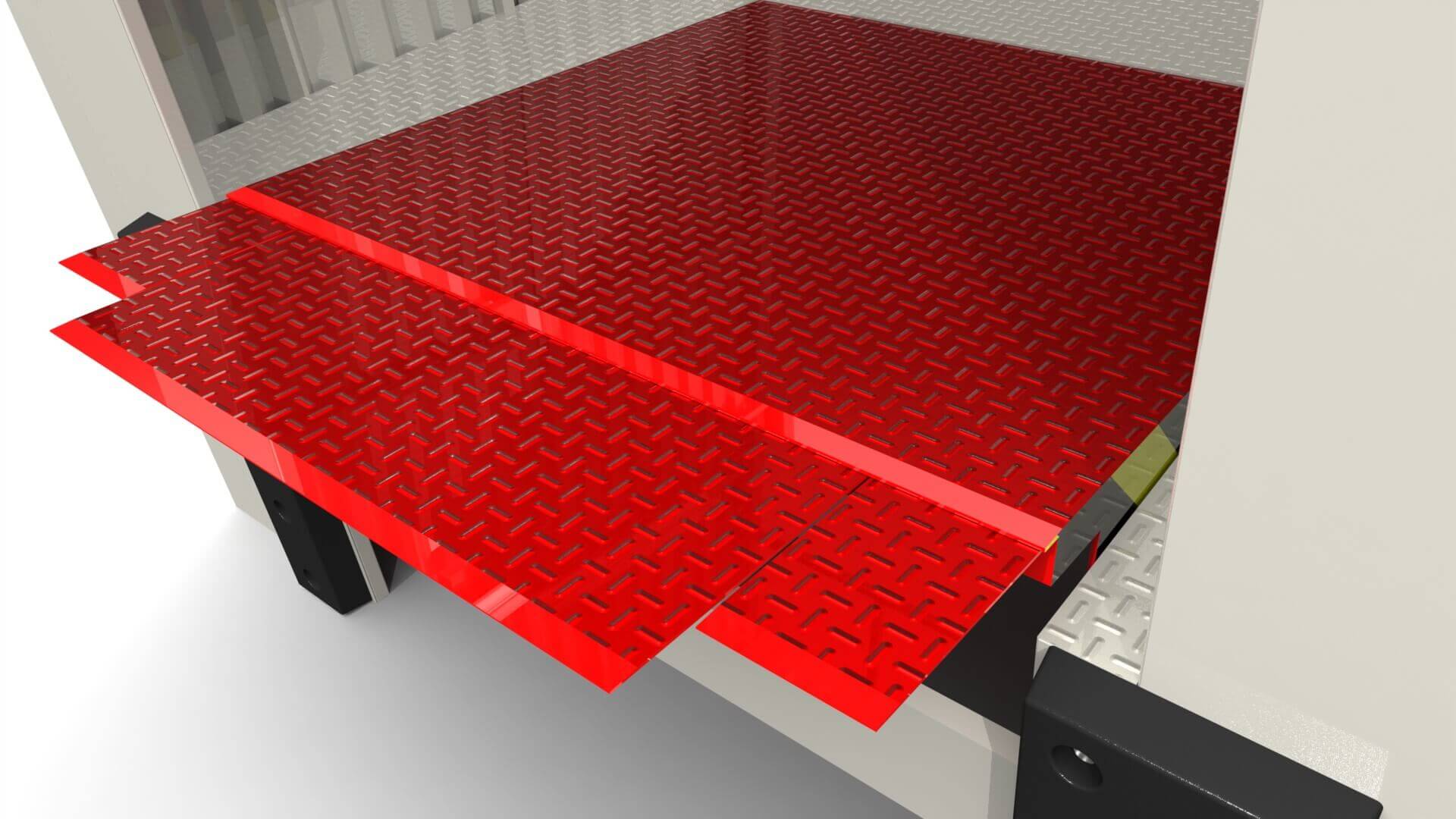

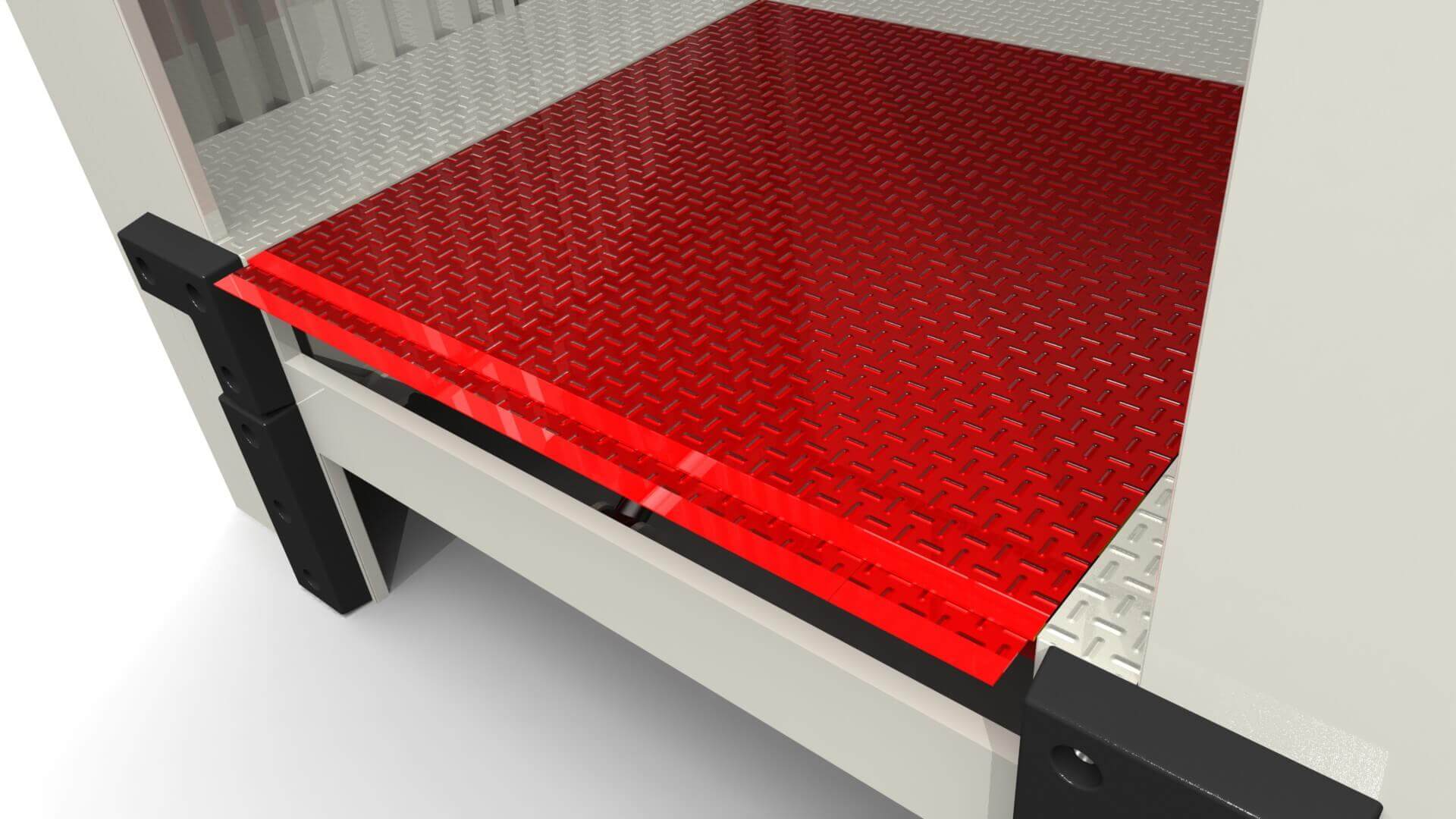

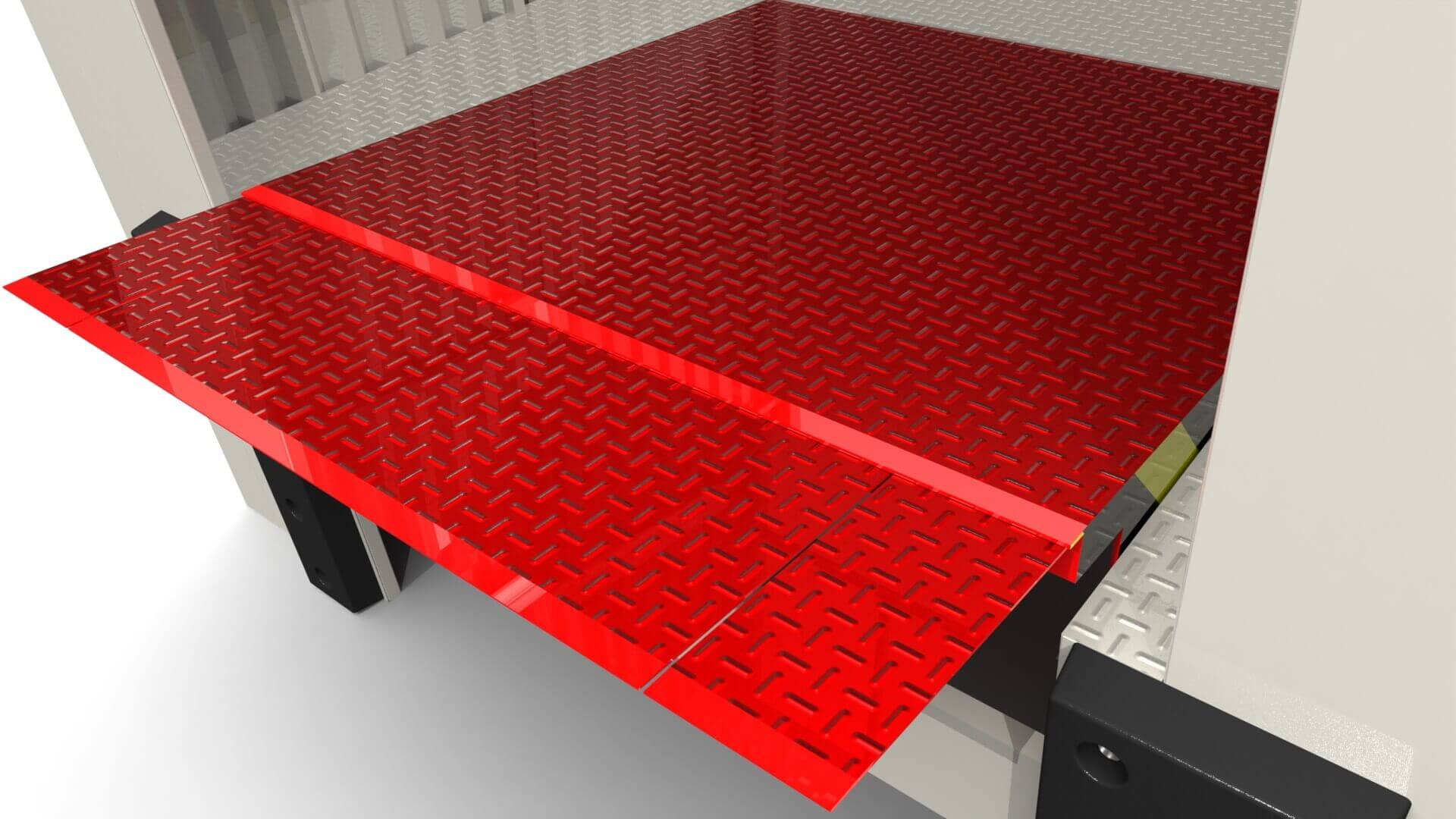

Sequence of Operation

Technical Specification

  • Hydraulic system designed to be coupled perfectly onto the vehicle deck. The retractable lip can be extracted using the electric control panel and fitted onto the vehicle’s platform in optimum conditions
  • The retractable lip is the perfect solution for ensuring optimal insulation of the facility as it can be sealed by installing an industrial door in front of the leveller
  • The hydraulic equipment comprises a 1.5 CV electric motor, hydraulic pump with a flow rate of 5 l/m and a 7-litre tank with an oil level viewer, safety electro valve, elevation cylinder with a Ø50mm rod, lip cylinder with a Ø25 mm rod and hydraulic hoses
  • Grooved comb system at the front of the machine spreads the stress through the structure, reducing structural pressure and so, increases the life of the machine
  • All the components and the moving parts, lip and internal structure are painted separately with an anti-corrosive primer followed by a coat of high-quality paint ensuring a double 1+1 layer which guarantees 200% protective coating
  • The lip position can be adjusted and optimised as it has a set of polyamide regulation skids. Those skids are responsible for guiding and sliding of the lip
  • The lip has a set of profiles and a grooved tear plate with a thickness of 13/15 mm, forming a robust, compact assembly. The tear plate 100 mm from the end is folded 5º for perfect adjustment of the truck and milled at its outer end, to ease the passage of fork lifts
  • All the shafts are protected from corrosion by a passivated zinc electrolytic coating
  • Levellers come with the option of being galvanised

Key Benefits

Meets EN1398 standard

Increased operational range

 Made to measure available

Optional colours available

Segmented lips available

Suspended or pit type available

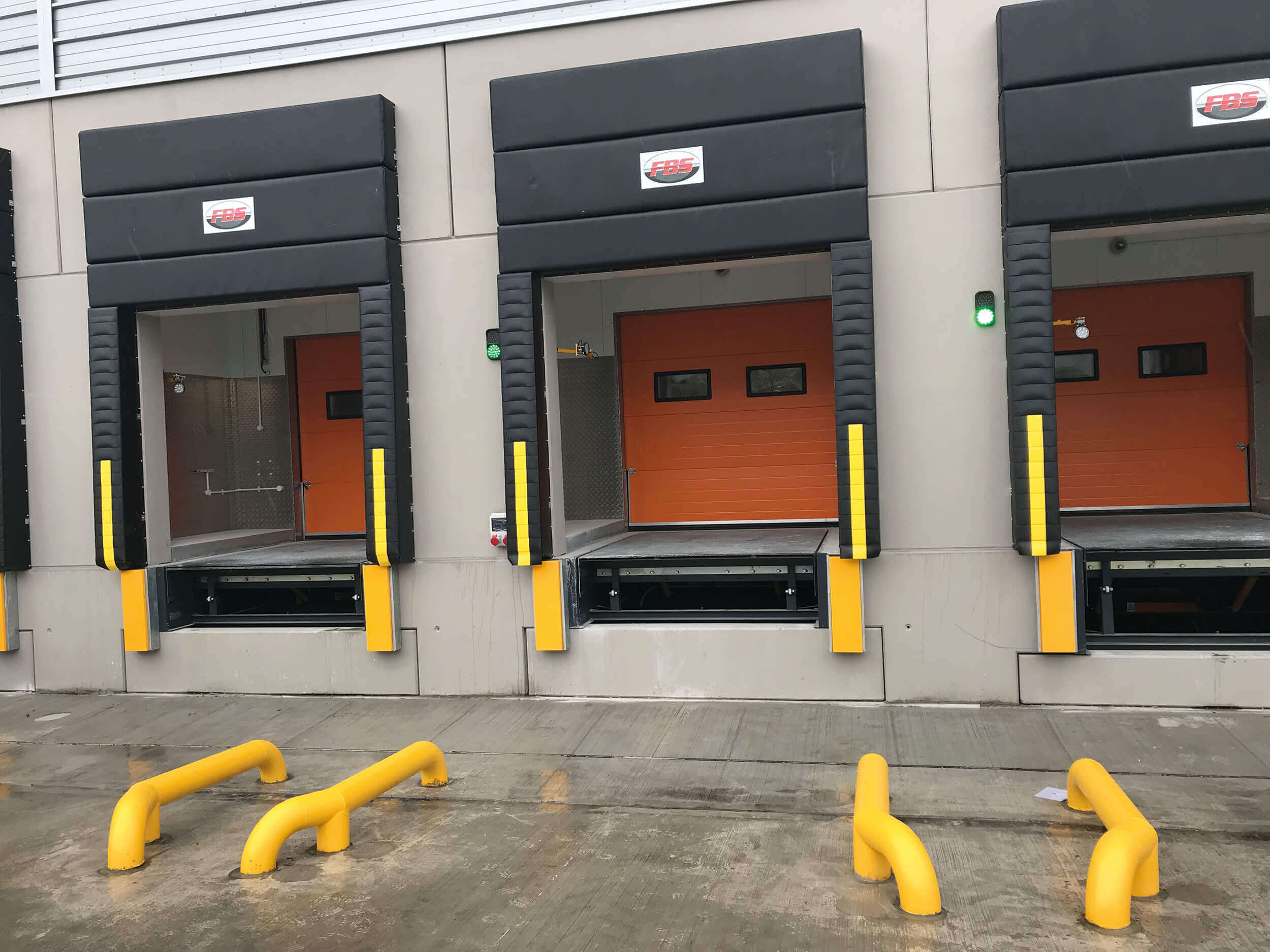

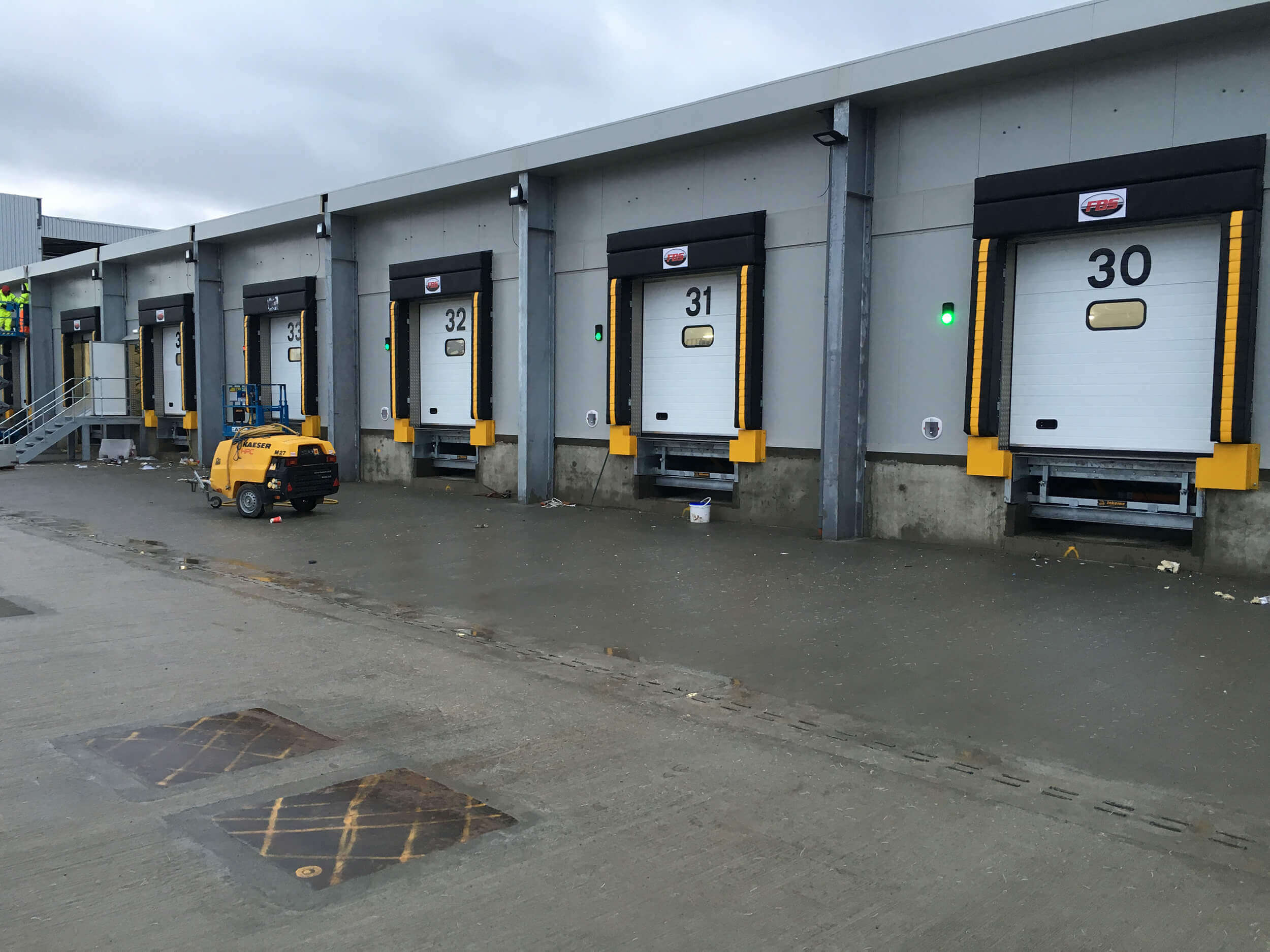

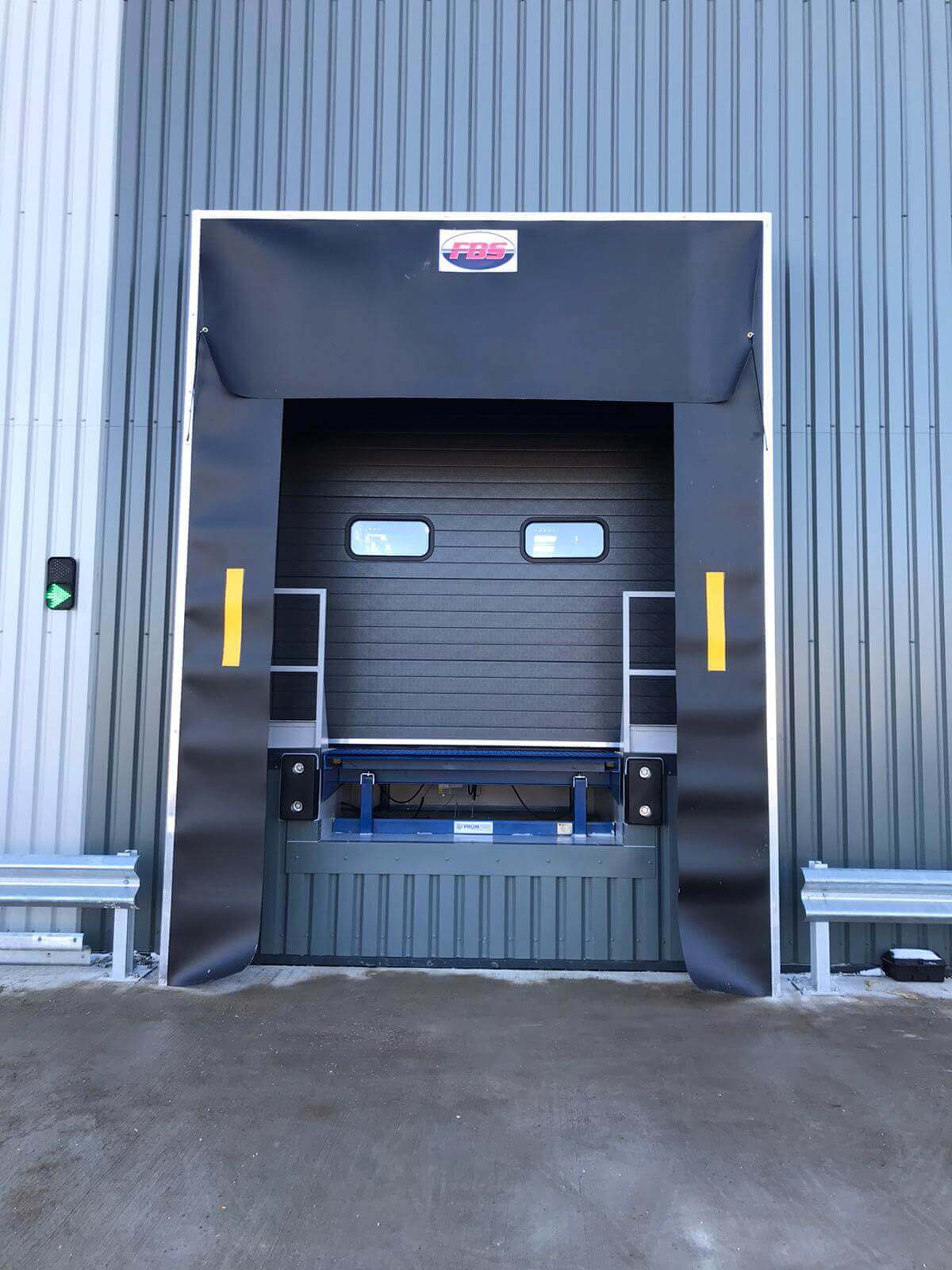

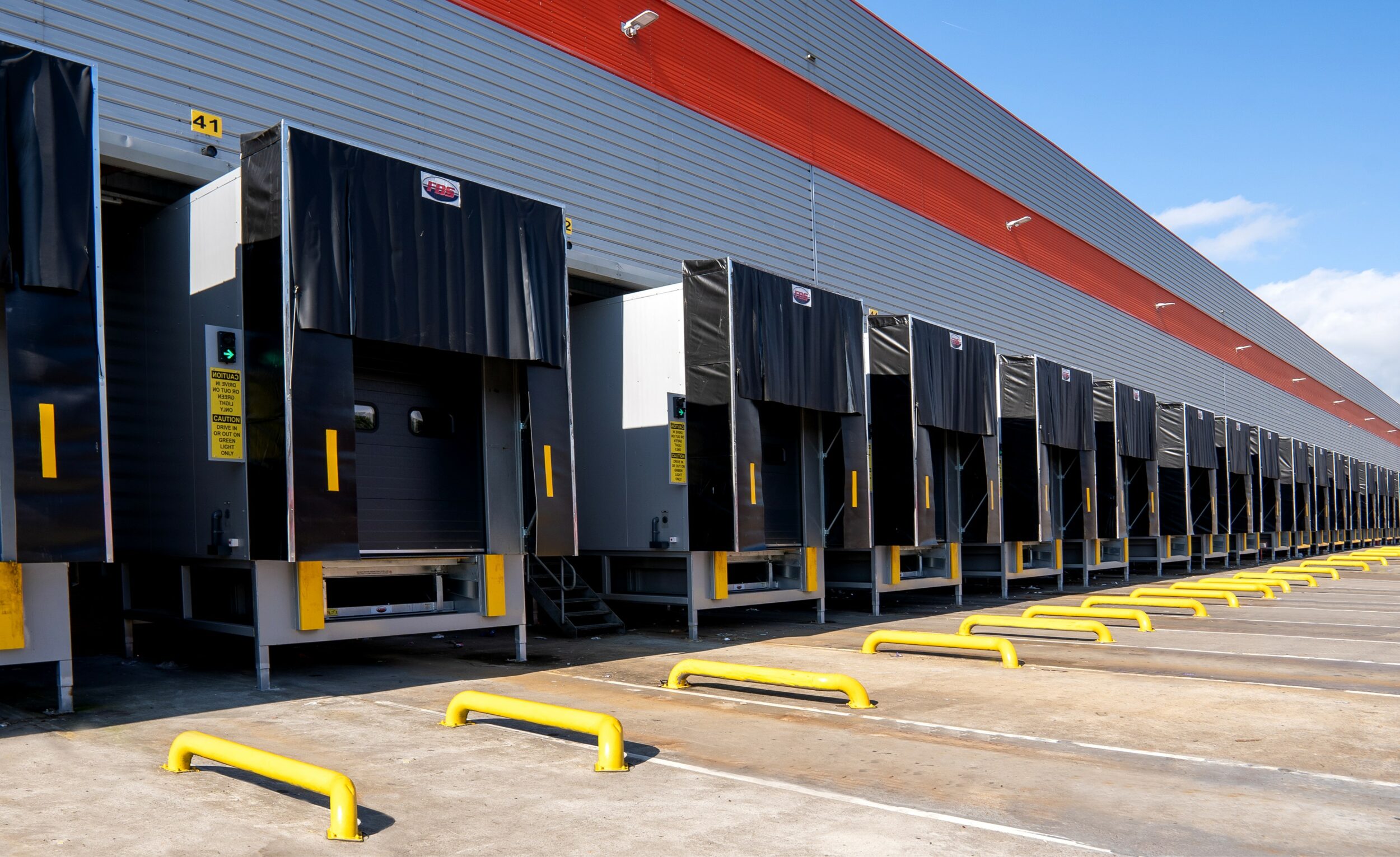

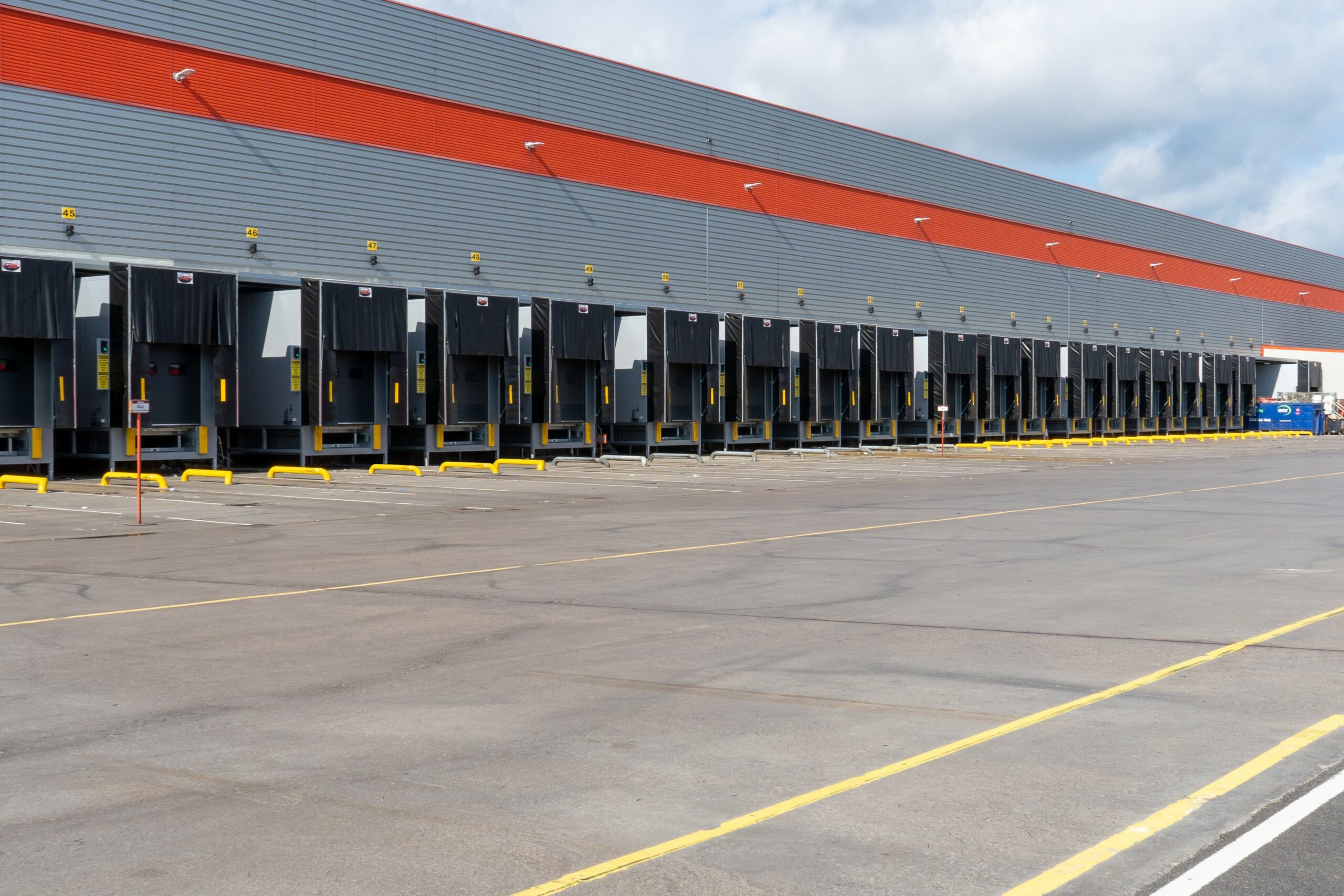

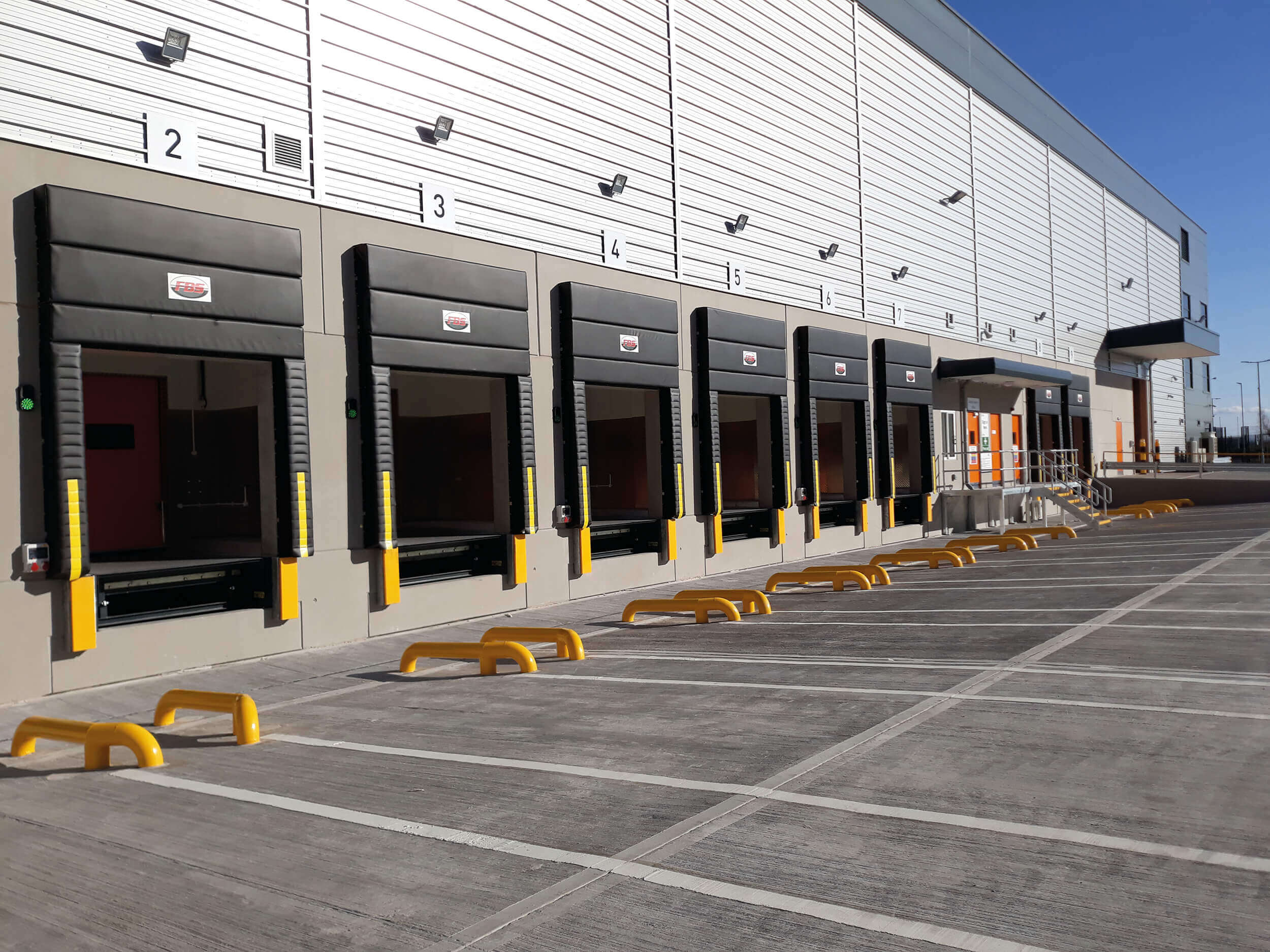

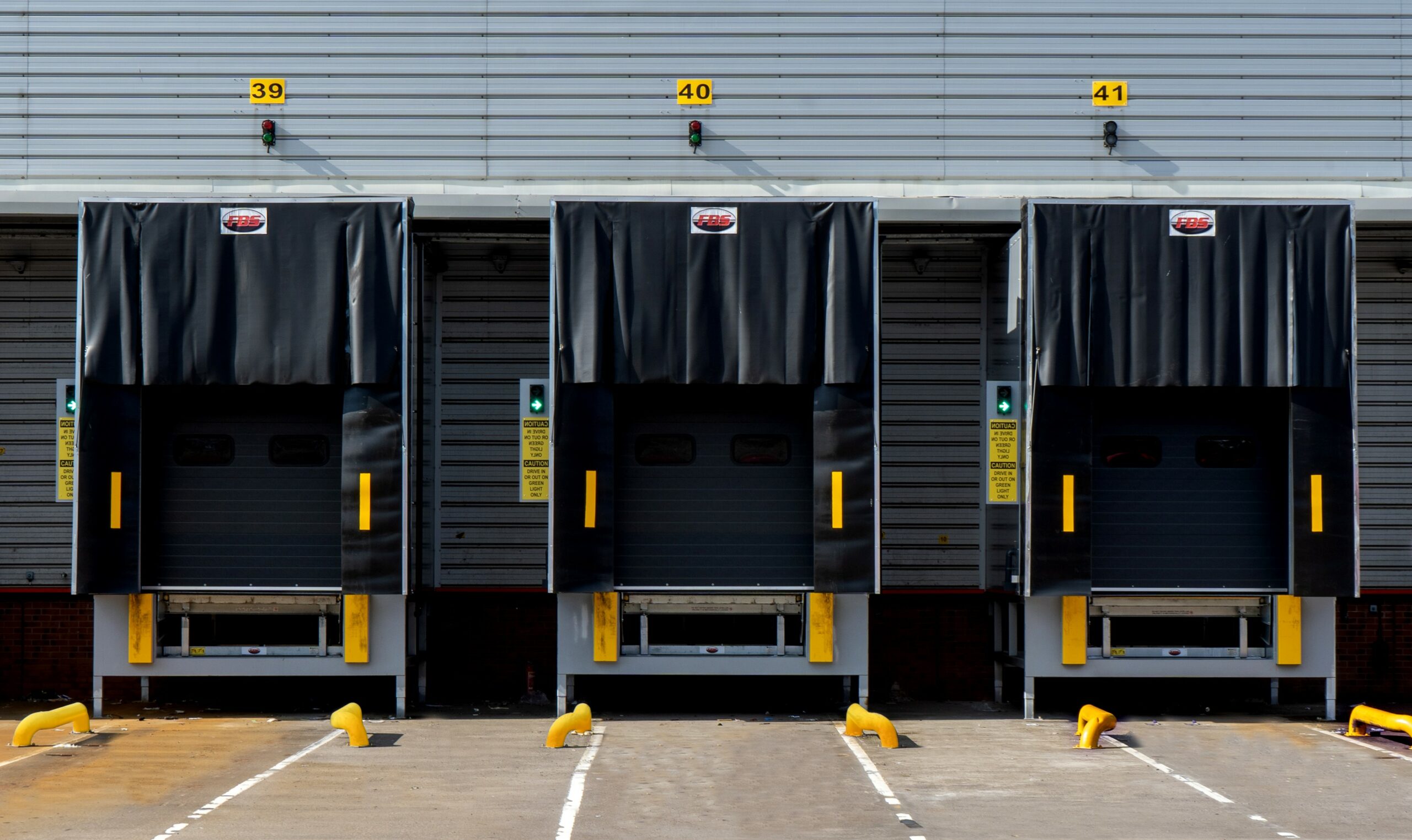

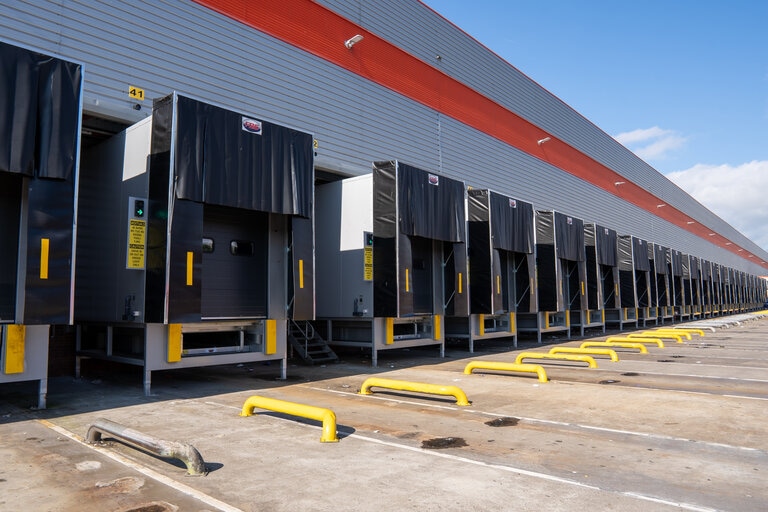

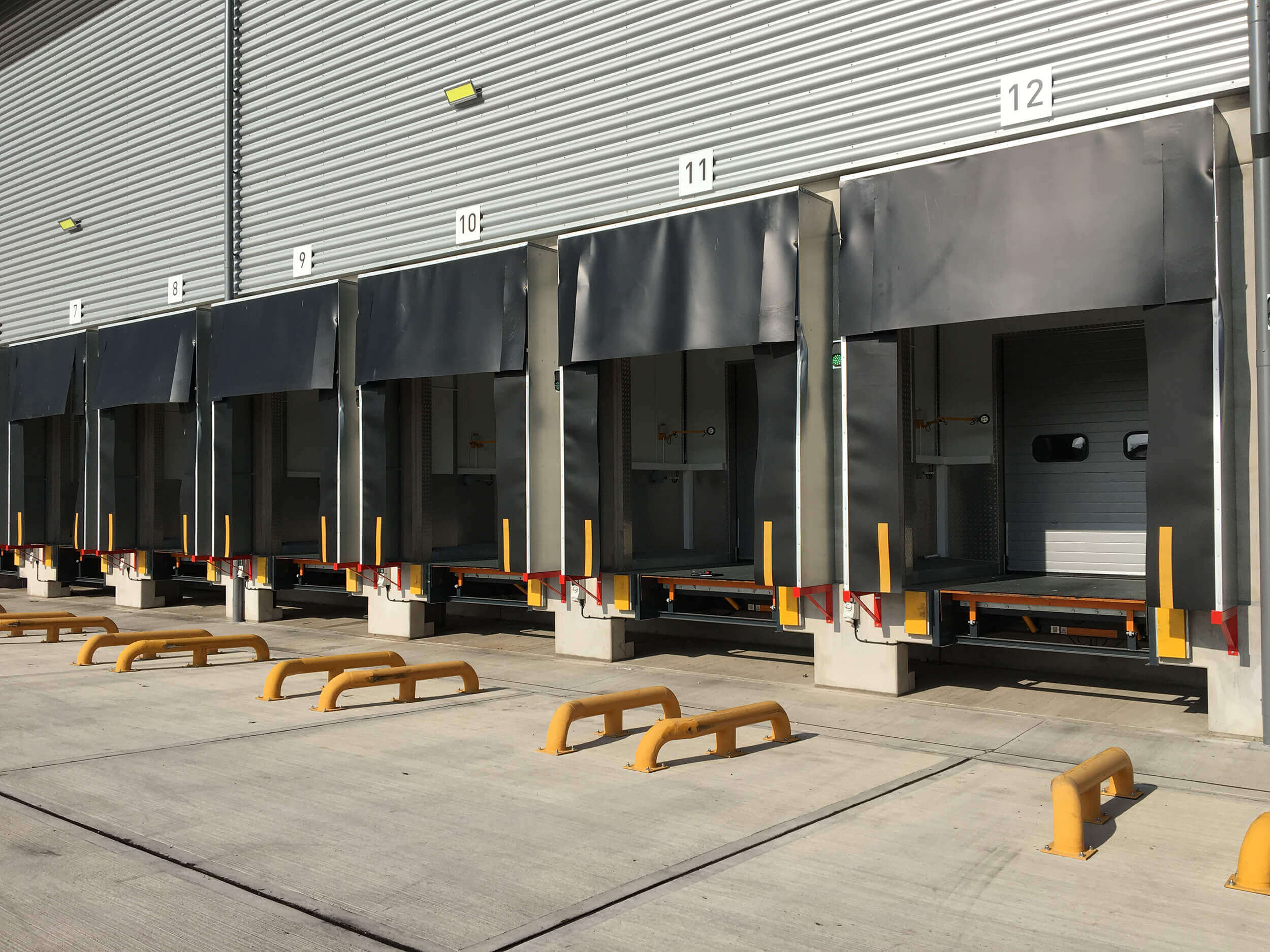

Gallery
