Manual-Edge-of-Dock Leveller

Cost-effective, reliable solution for basic dock leveller applications

Manual-Edge-of-Dock Levellers

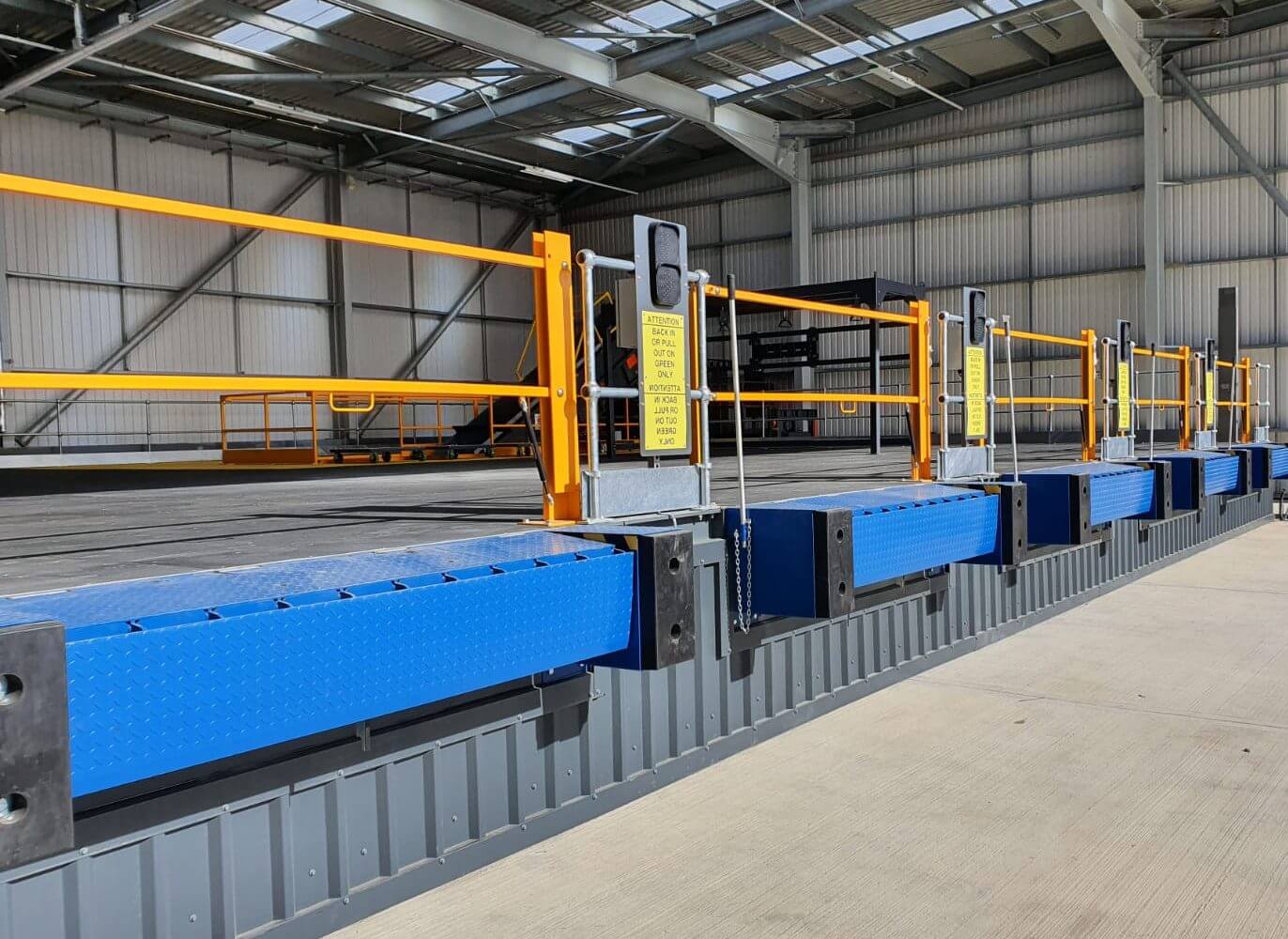

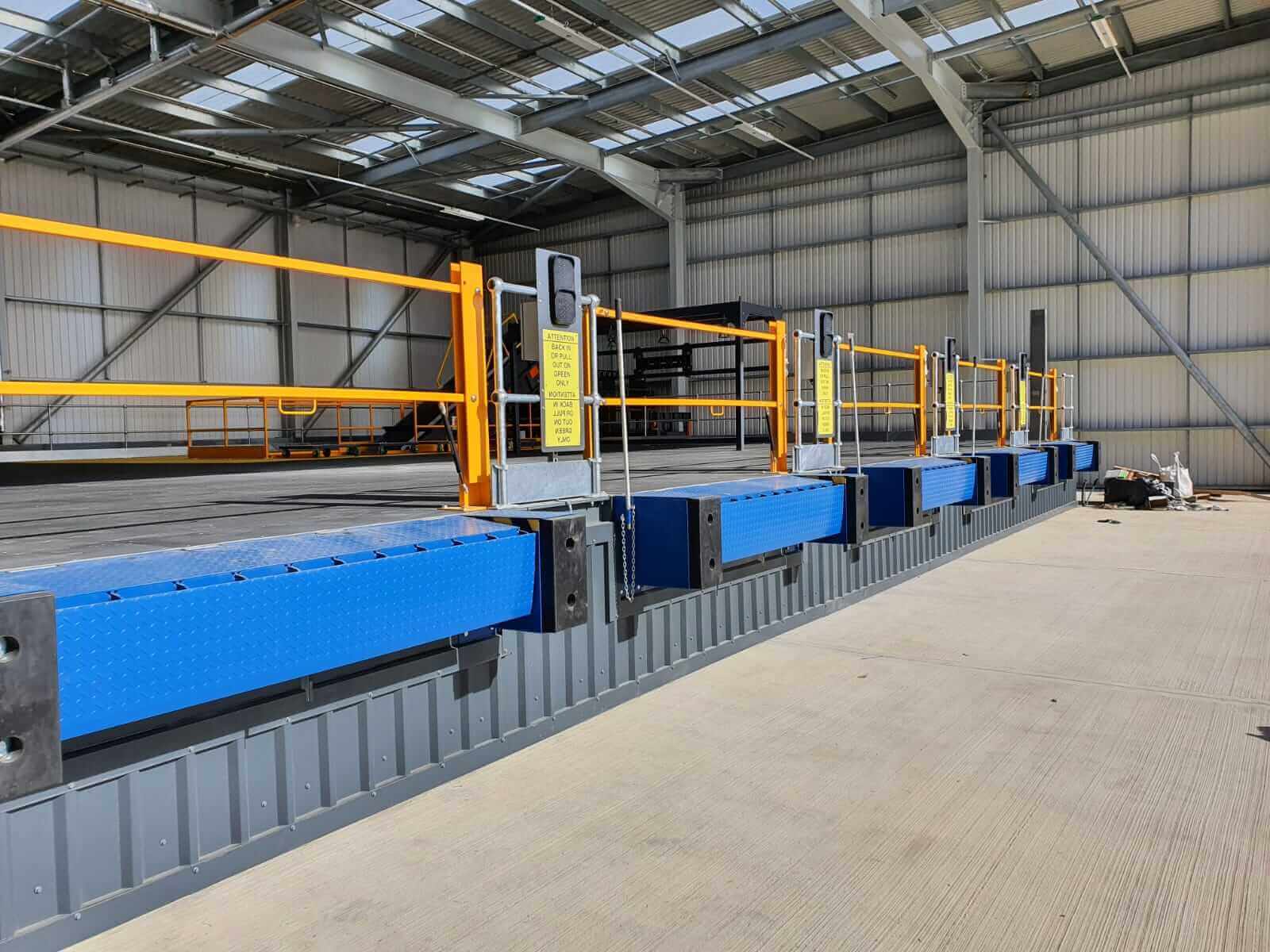

Manual-Edge-of-Dock Levellers bridge any minimal difference in height and distance between the warehouse floor and vehicle, ensuring loading and unloading is safe.

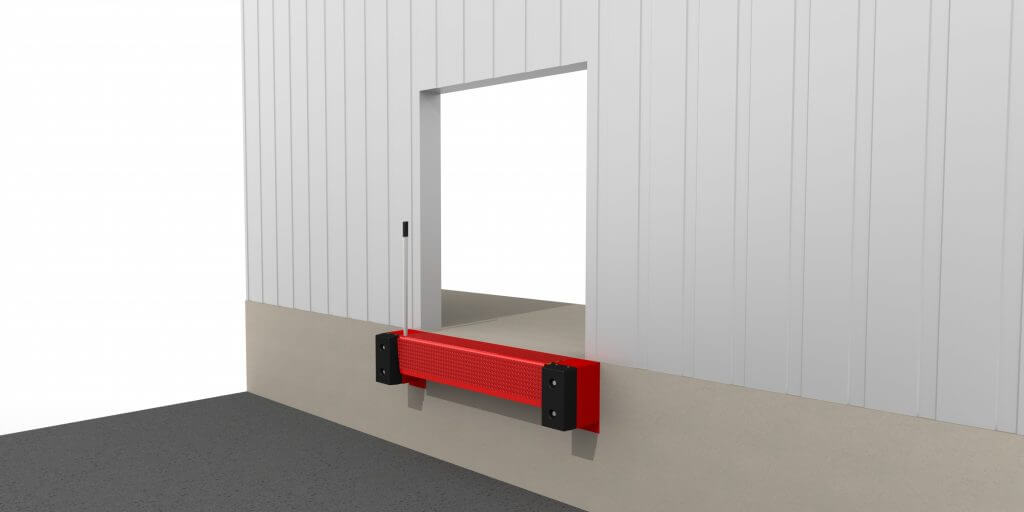

Requiring no pit installation, the FBS Manual-Edge-of-Dock Levellers are a must have for simple loading bay operations. They are quick and easy to install, reliable and cost-effective.

The Manual-Edge-of Dock-Leveller can support a 6000kg load and is supplied with a special coating for corrosive atmospheres.



Key Components

The FBS Manual-Edge-of-Dock Leveller is comprised of three main components:

  • Platform: upper sheet of tear plate with a thickness of 6/8mm and solid profiles
  • Lip: made of tear plate with a thickness of 13/15mm
  • Handrail: welded to the bay sub-frame in order to increase safety when loading and unloading goods

Operation

  • The inner mechanism enables operatives to open the unit with very minimal effort

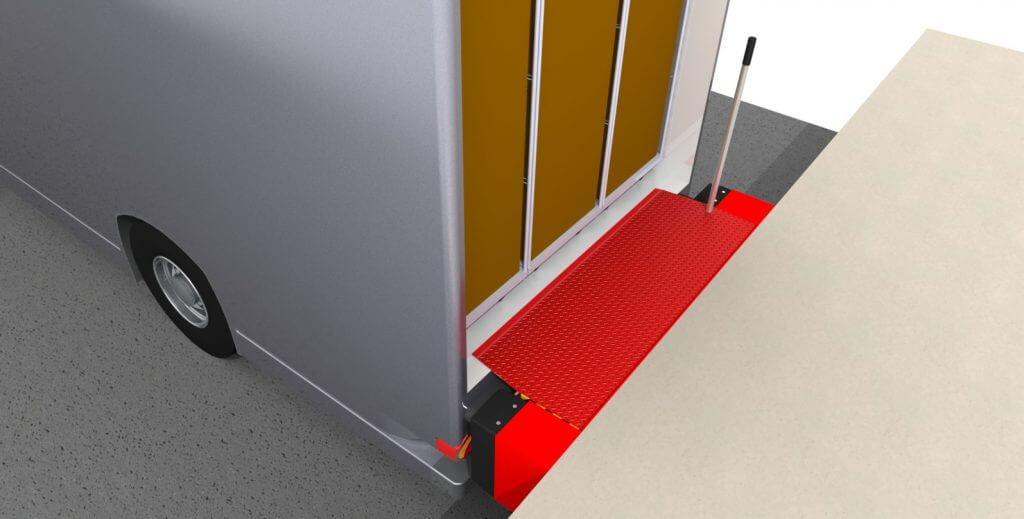

  • A lever is inserted into the moving platform and pulled back until it is completely vertical

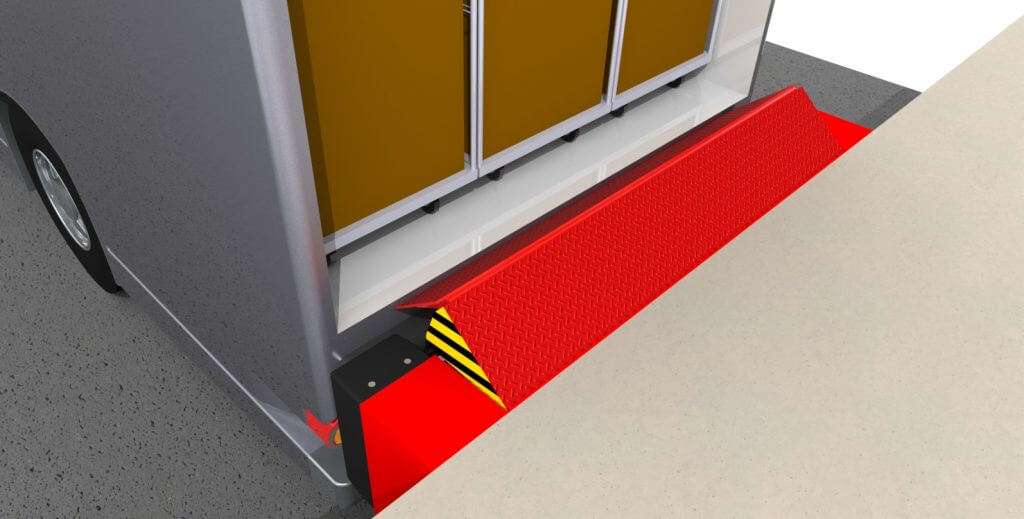

  • It is then pushed forward until the lip rests on the trailer
  • After loading, the manual lever is re-inserted and pulled backwards (without raising it entirely) and relocated back onto the stops

Optional Extras

  • Bumpers – available for installation at each end
  • Painted/Galvanised/Stainless
