FBS Maviclean: High Speed Clean Room Doors
✓ Health + safety
✓ Energy saving
✓ Reduces exchange of airloss
✓ Easy cleaning
✓ Controls environments
✓ Easily maintained

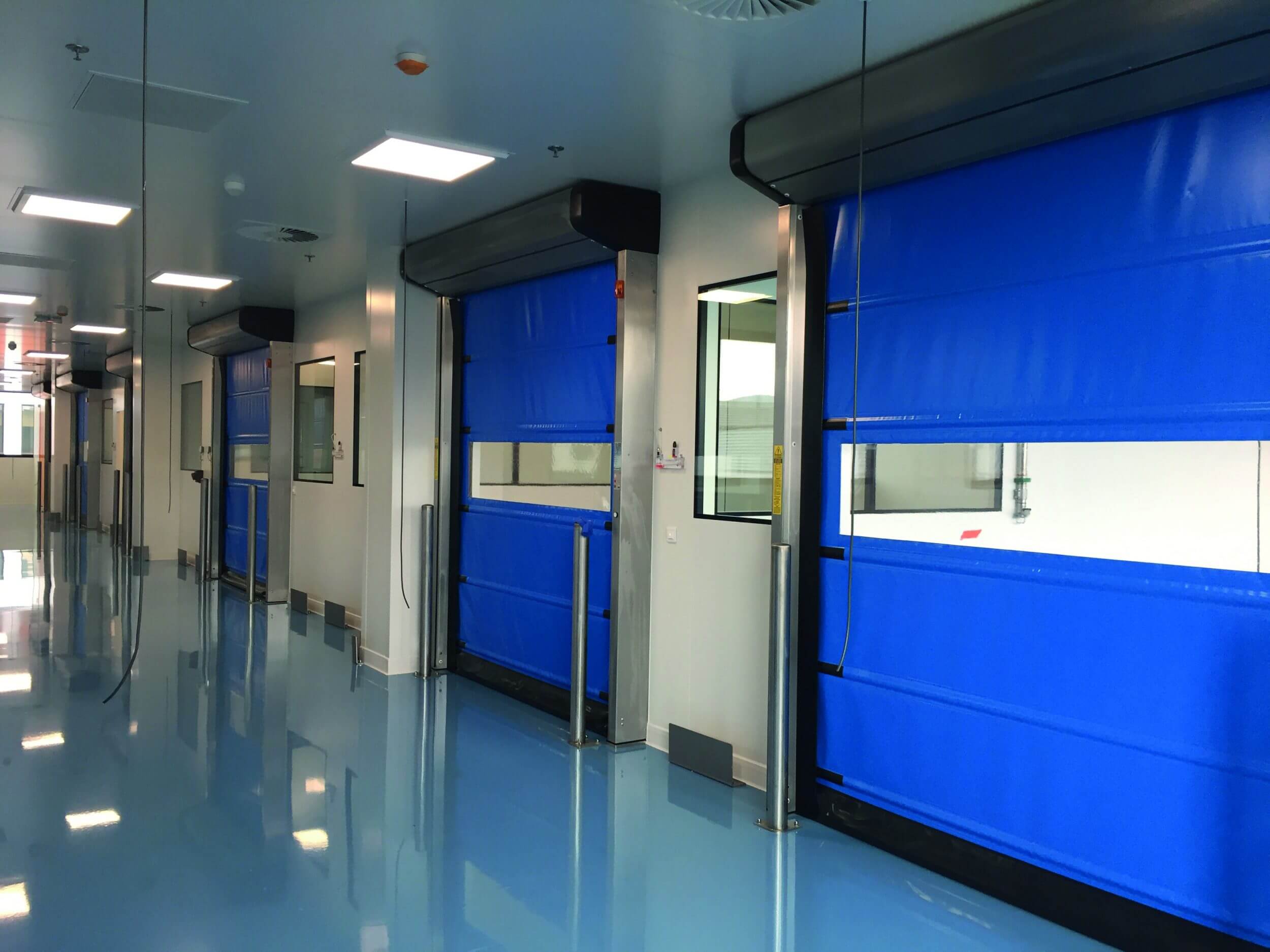

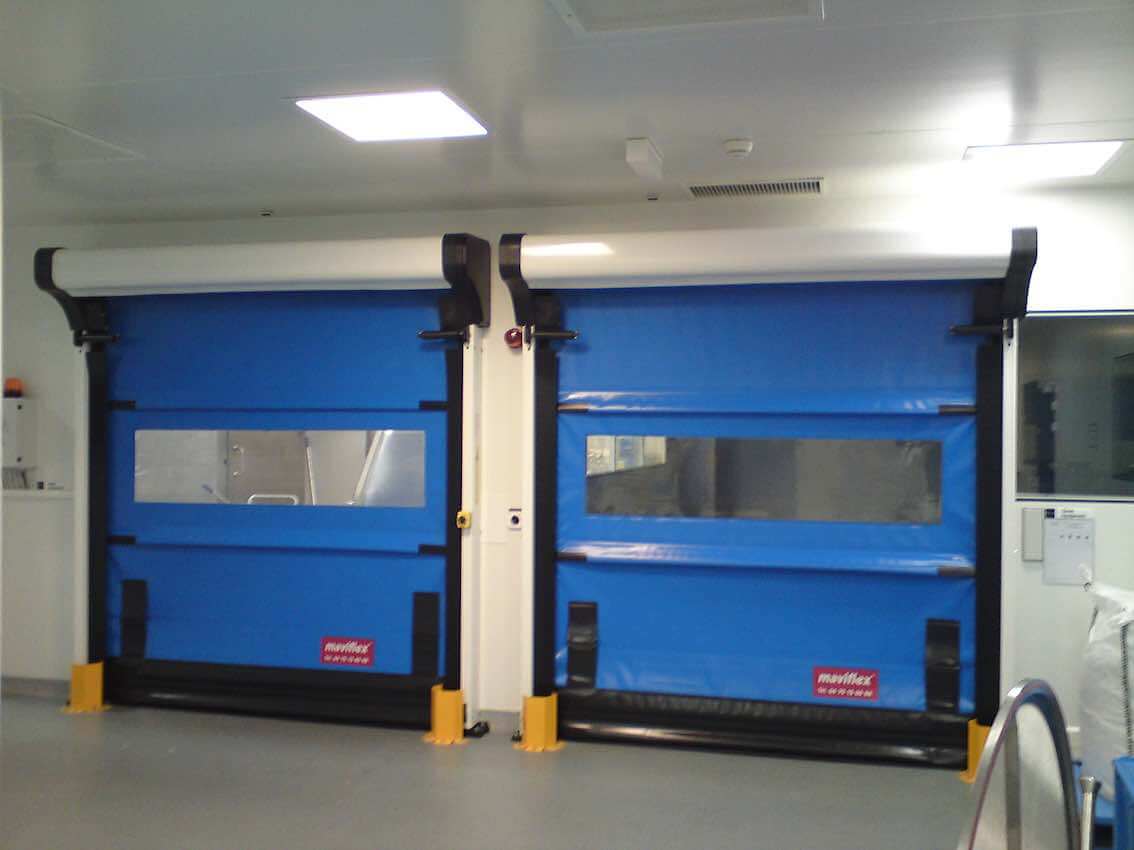

FBS Maviclean high-speed clean room door is designed to maintain air pressure in a controlled environment. They are are renowned for their reliability and are therefore ideal for clean rooms locations – including the pharmaceutical and healthcare industry.
They are quick and easy to install and features a unique self-repairing feature – a rapid rise curtain that enables the door to automatically reset itself in the event of accidental damage – simply by being fully opened. The anti-crash system also means that if the curtain is caught by a fork lift or by any other means, it will reset itself again before closing – saving money on expensive repair bills.
EN 13241-1 Safety Standard EC
CSTB REPORT N°BV04-126 – measured air tightness, pressure resistance test.
Opening: 1 m/s Closing: 0.5 m/s
Self-Supporting mill galvanised Steel Frame with polyester powder coated finish
Patented Flexible Track Structure
Unique Flexible Track – with Break-a-Way curtain and automatic re-insertion system
Soft Bottom Edge technology – prevents conflict with rigid bottom edge electronics
Hood/Top Roll and Motor Cover
Jamb Inserted Control Panel
Maximum clearance – Height 4000mm x Width 4000mm
Double Skin Curtain with Insulated Foam – for chilled rooms
Battery Back-Up – for automatic opening (power supply 230v single phase)
